Schneider Electric XB5AV64 Led Pilot Light 250V 30mm Red

Product Description

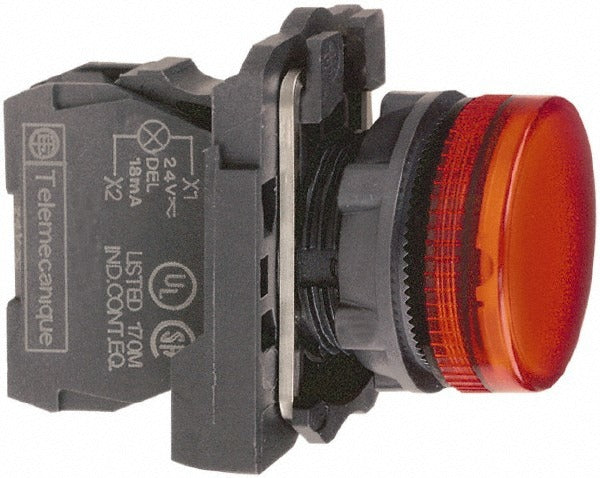

The SCHNEIDER ELECTRIC XB5AV64 is a 30mm LED pilot light designed for panel indication in industrial and commercial control applications. Rated at 250 volts and fitted with a red round lens, it provides a clear, low-power visual status signal on control panels, machine fronts, and switchgear enclosures. The unit uses a screw clamp connector for a secure, tool-assisted termination and is built to resist both vibration and water ingress, making it suitable for demanding service environments. Licensed electricians and panel builders are the primary installers of this device.

This pilot light is used in industrial control panels, motor control centers, and OEM machine builds where a 30mm panel cutout is standard. Its NEMA 4X rating supports use in wet or washdown locations. The red lens signals fault, run, or stop conditions depending on panel logic. At 0.07 pounds, it is a lightweight drop-in indicator suitable for both new panel builds and field replacements requiring a 30mm-format LED pilot light.

Key Features

• Red round lens provides clear visual status indication
• LED lamp type for long service life and low current draw
• Screw clamp connector for reliable, secure wire termination
• Vibration resistant construction suited for industrial machinery
• Water resistant design with NEMA 4X rating for wet locations
• Meets multiple international standards including UL 508, CSA, and EN/IEC 60947-5-1

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for control panels and enclosures using a standard 30mm mounting format.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local electrical codes. De-energize the control panel and verify zero voltage before handling wiring or inserting the pilot light into the panel cutout. Use the screw clamp connector with an appropriate hand tool to ensure a firm termination on the signal or power lead. Do not exceed the 250-volt rated supply voltage.
