Schneider Electric XB5AA25 Push-button Switch Momentary

Product Description

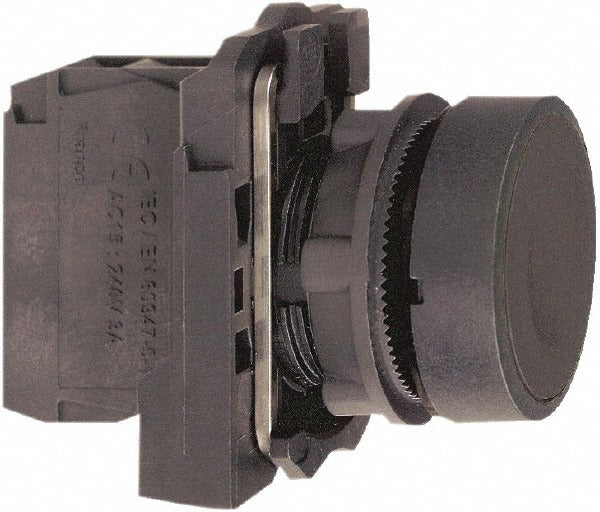

The SCHNEIDER ELECTRIC XB5AA25 is a momentary push-button switch designed for industrial control panel applications. It features a 22 mm mounting hole diameter, a flush-style round black plastic button, and screw terminal connections. The contact configuration supports both normally closed (NC) and normally open (NO) circuits, making it versatile for a range of control logic setups. Rated for NEMA 13 and 4X environments, it resists dust, oil, and water ingress. Licensed electricians and panel builders typically install this switch in motor control centers, machine control enclosures, and similar industrial equipment.

The XB5AA25 is suited for residential, commercial, and industrial control panel builds where a reliable momentary actuation point is required. Its NEMA 4X rating qualifies it for use in corrosive or washdown environments. The 22 mm mounting diameter is a widely adopted standard in industrial control hardware, and the screw terminal design simplifies field wiring during panel assembly or replacement service.

Key Features

• Momentary (MO) operation with NC/NO contact configuration
• 22 mm mounting hole diameter — standard industrial panel fit
• Flush-style round button in black plastic construction
• Screw terminal wiring connections for reliable field termination
• NEMA 13 and 4X rated for dust-tight and corrosion-resistant environments
• Meets CSA, UL 508, EN/IEC 60947, and JIS C 4520 standards

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 22 mm standard industrial control panel cutouts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local codes. De-energize the control panel and verify zero voltage before beginning any wiring work. Screw terminals should be tightened to the terminal manufacturer specifications using an appropriate insulated screwdriver. Confirm NC/NO contact assignment against the control schematic before completing installation.
