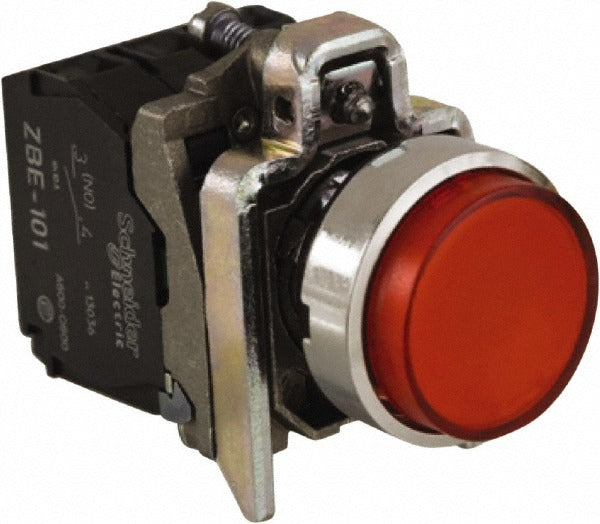

Schneider Electric XB4BW14B5 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC XB4BW14B5 is an illuminated momentary push-button switch rated for 600 volts and 10 amps, designed for industrial control panel and machine control applications. It features a red, round, extended (straight) operator and a combined NC/NO contact configuration, giving technicians both normally closed and normally open switching in a single unit. The 22mm (0.87 inch) mounting hole diameter is a widely adopted panel cutout standard. Screw terminals simplify field wiring. The switch carries NEMA 4, 4X, and 13 ratings, making it suitable for wet, dusty, and corrosive environments. Licensed electricians and industrial controls technicians are the primary installers of this device.

This push-button switch is built for use in industrial and commercial control panels, motor starter stations, operator interface enclosures, and machine control circuits. Its anti-corrosive, dusttight, and watertight construction makes it appropriate for washdown environments, outdoor enclosures, and manufacturing floor applications where contamination is a concern. The momentary operation returns the switch to its default state when released, a common requirement in start/stop and jog-control circuits. Its illuminated operator provides a clear visual status indicator at the control station.

Key Features

• Illuminated red round extended operator for clear visual indication at the control station
• Momentary (MO) operation with NC/NO contact configuration in a single switch body
• 600-volt, 10-amp rating supports a wide range of industrial control circuits
• 22mm (0.87 inch) mounting hole diameter fits standard panel cutouts
• NEMA 4, 4X, and 13 ratings — dusttight, watertight, and anti-corrosive
• Screw terminal connections for reliable, tool-accessible field wiring
• Meets CE, CSA, and UL Listed standards for broad compliance

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 22mm panel cutout control stations in industrial and commercial electrical control systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control panel before beginning work. Confirm the panel enclosure rating matches or exceeds the NEMA 4, 4X, or 13 rating of this switch when installing in wet or corrosive locations. Do not exceed the rated voltage or amperage for the contact configuration in use.
