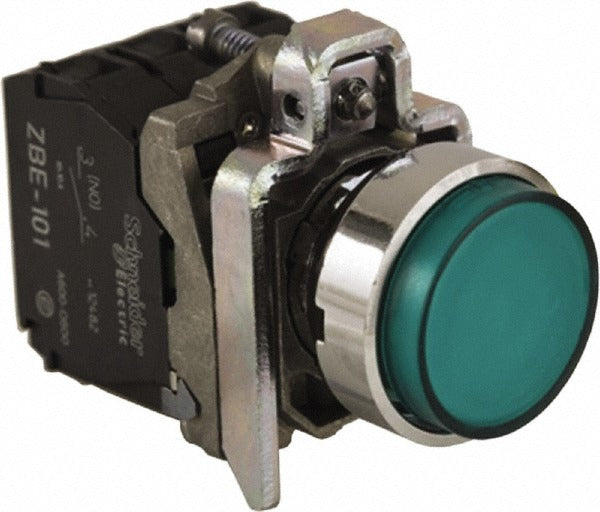

Schneider Electric XB4BW13G5 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC XB4BW13G5 is an illuminated, momentary push-button switch rated for 600 volts and 10 amps. It features a green, round, extended-profile operator with a built-in LED lamp and a dual-contact configuration supporting both normally closed (NC) and normally open (NO) circuits. The 22 mm (0.87 inch) mounting hole diameter fits standard 22 mm panel cutouts. Screw terminals provide secure, serviceable wire connections. This switch is built to resist corrosion, dust, and water ingress, making it well suited for demanding industrial and commercial electrical panel environments. Licensed electricians and industrial control technicians are the primary installers.

This push-button switch is used in machine control panels, motor starter circuits, and industrial automation enclosures where a momentary operator with visual status indication is required. The NEMA 4, 4X, and 13 ratings make it appropriate for indoor and outdoor applications exposed to washdown, dust, or corrosive atmospheres. The NC/NO contact configuration supports both energize-to-run and safety-interlock wiring schemes common in light commercial and industrial control systems.

Key Features

• 22 mm mounting hole diameter fits standard 22 mm panel cutout hardware
• Momentary operation with NC and NO contact outputs in a single unit
• Integrated green LED lamp provides clear operator status indication
• Rated 600 volts and 10 amps for both AC-15 and DC-13 utilization categories
• NEMA 4, 4X, and 13 enclosure ratings — dusttight, watertight, and anti-corrosive
• Screw terminal connections for reliable field wiring

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for standard 22 mm panel-mount control stations in industrial and commercial electrical enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing or installing any switch operator or contact block. Verify that panel enclosure ratings are maintained after installation to preserve NEMA 4, 4X, and 13 compliance. Do not exceed the rated voltage or amperage on either the NC or NO contact circuit.
