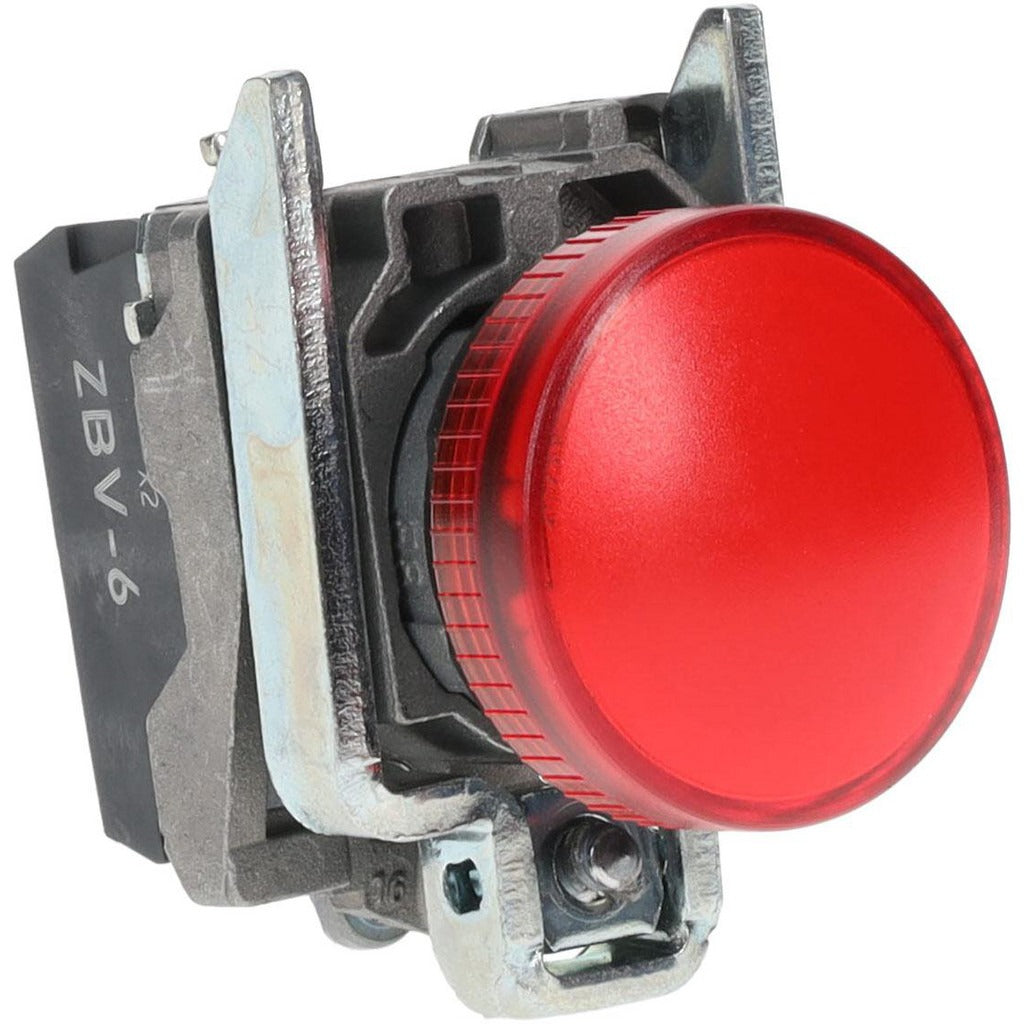

Schneider Electric XB4BV64 Pilot Light 250V Red 30mm

Product Description

The SCHNEIDER ELECTRIC XB4BV64 is a 250-volt pilot light designed for industrial control panel applications. It features a round red lens and a screw clamp connector for secure, tool-assisted termination. The unit mounts through a 22mm panel cutout and has an overall diameter of 30mm. Built to withstand harsh service environments, the XB4BV64 carries vibration-resistant and water-resistant ratings, making it suitable for demanding installations where panel-mounted indicators are exposed to moisture or mechanical stress. Electricians and control panel technicians install this indicator light as a status or power-on signal in automated machinery, HVAC control panels, and industrial equipment enclosures.

The XB4BV64 is intended for use in control panel assemblies requiring a 22mm cutout pilot light rated at 250 volts. Its compact footprint — 1.7 inches wide, 2.3 inches in length, and 1.3 inches in height — suits both new-build and retrofit panel work. The red lens color is commonly used to signal fault, stop, or power-on status depending on the control logic of the system. The screw clamp connection method is standard in industrial and commercial electrical control enclosures and accommodates solid or stranded conductors without requiring ferrules.

Key Features

• 250-volt rating suitable for industrial control circuit applications
• Red round lens for clear visual status indication
• 30mm overall diameter with 22mm panel cutout requirement
• Screw clamp connector for reliable, maintenance-friendly termination
• Vibration-resistant and water-resistant construction for harsh environments
• Meets UL 508, NEMA 4X, CSA, and multiple EN/IEC standards

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for industrial control panels requiring a 22mm cutout, 250-volt rated indicator with a screw clamp connection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local codes. De-energize and lock out the control panel before mounting or wiring the pilot light. The screw clamp terminals accept solid or stranded conductors — torque the terminals to the manufacturer specification printed on the device or in the product datasheet. Verify the panel cutout diameter is 22mm before installation to ensure proper seating and IP rating integrity.
