Schneider Electric XB4AB2 Square D 22 mm Mushroom Head Push Button

Product Description

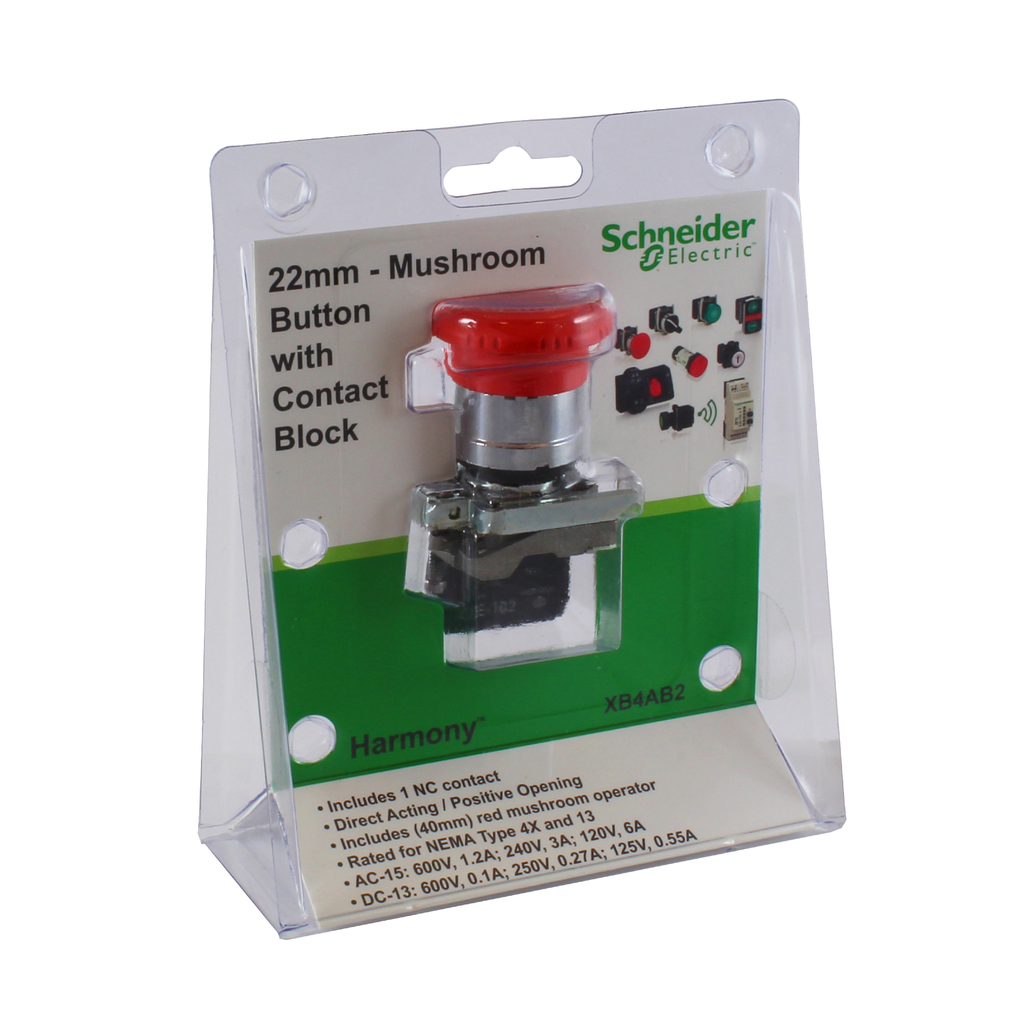

The Schneider Electric XB4AB2 is a 22 mm mushroom head push button designed for industrial applications. This device features a chromium plated metal bezel and a metal mounting collar, ensuring durability. It operates as a turn-to-release mechanism with a 40 mm red mushroom button. The push button includes one normally closed contact with ratings for UL A600, UL Q600, IEC AC15, and IEC DC13. This equipment is rated NEMA 4, 4X, and 13, making it suitable for various environments.

• UL Listed and CSA certified for reliable safety
• Compatible with a 22 mm panel cut-out
• Ideal for machine builders in automotive, textile, and wood industries

Product Highlights

This push button assembly weighs 0.26 pounds and has dimensions of 1.85 inches in height, 1.57 inches in width, and 3.23 inches in depth. Designed for ease of installation, this product meets multiple standards, including EN/IEC 60947-5-4 and UL 508.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: XB4AB2
• Weight: 0.29 lb
• Width: 40 mm
• Height: 47 mm
• Depth: 104 mm
• Standard: CSA C22.2 No 14, IEC 60364-5-53
• Color: Red
• Contact Material: Silver Alloy
