Schneider Electric XAPG39503 Pushbutton Switch Enclosure

Product Description

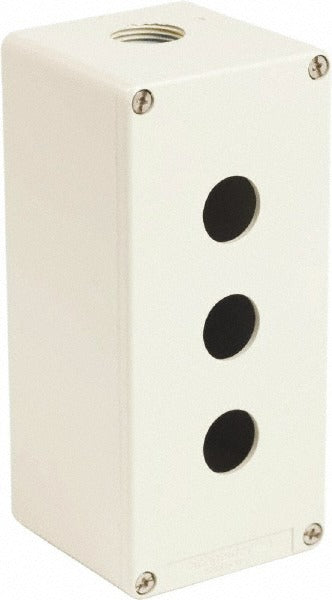

The SCHNEIDER ELECTRIC XAPG39503 is a three-hole pushbutton switch enclosure designed to house and protect industrial control components in demanding environments. Built from zinc alloy, this enclosure carries NEMA 4 and NEMA 13 ratings, making it suitable for applications requiring resistance to dust, oil, and water ingress. Each of the three mounting holes measures 1.58 inches in diameter, accommodating standard 40 mm pushbutton operators. The enclosure measures 6.9 inches high by 3.15 inches wide by 3.03 inches deep, providing adequate internal volume for wiring and hardware. Electricians and industrial control technicians typically specify this type of enclosure for machine control panels, production equipment, and automation stations.

This enclosure is intended for use in industrial and commercial settings where control operators must be mounted in a durable, sealed housing. Its zinc alloy construction provides strength without excessive bulk, and the NEMA 4 and 13 ratings make it appropriate for locations subject to coolant splash, non-corrosive oils, and general dust exposure. It is commonly installed on the exterior of machine frames, control pedestals, and operator stations in manufacturing and process environments.

Key Features

• Three pre-drilled holes, each 1.58 inches (40 mm) in diameter, for standard pushbutton operators
• Zinc alloy construction for durable, impact-resistant performance
• NEMA 4 and NEMA 13 rated for protection against dust, water, and oil ingress
• Overall dimensions: 6.9 inches high x 3.15 inches wide x 3.03 inches deep
• Package weight: 2.94 pounds

Compatibility

Designed as an OEM-style replacement enclosure compatible with standard 40 mm pushbutton operators used in industrial control applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize all associated circuits before opening or wiring the enclosure. Verify that the mounting surface and orientation maintain the NEMA ingress protection rating — improper sealing or mounting can void the rated protection. Use appropriately rated conduit fittings and hardware when penetrating the enclosure for wiring entry.
