Schneider Electric XAPG29502 Pushbutton Switch Enclosure

Product Description

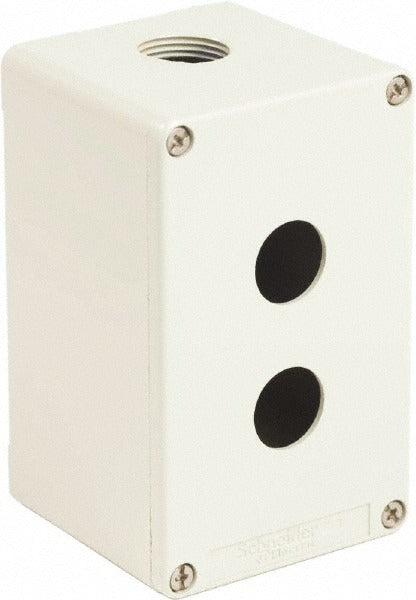

The SCHNEIDER ELECTRIC XAPG29502 is a two-hole zinc alloy pushbutton switch enclosure designed to house and protect pushbutton operators in industrial and commercial control applications. It measures 5.12 inches high by 3.15 inches wide by 3.03 inches deep, providing a compact footprint for panel or surface mounting. Each hole is sized at 1.58 inches in diameter, accommodating standard 40 mm pushbutton operators. With NEMA 4 and NEMA 13 ratings, this enclosure resists windblown dust, rain, and oil splash, making it suitable for demanding environments. Electricians and controls technicians typically install this enclosure as part of machine control or automation station assemblies.

This enclosure is suited for light industrial, manufacturing, and process control environments where pushbutton operators require protection from contaminants. Its NEMA 4 and NEMA 13 dual ratings make it appropriate for both indoor and outdoor wet or oily locations. It is commonly used in motor control stations, conveyor systems, and general-purpose industrial control panels where a durable metal housing is preferred over plastic alternatives. The zinc alloy construction provides corrosion resistance and mechanical durability for long service life in harsh conditions.

Key Features

• Two 1.58 inch diameter holes sized for standard 40 mm pushbutton operators
• NEMA 4 and NEMA 13 rated for protection against rain, dust, and oil splash
• Zinc alloy construction for corrosion resistance and mechanical strength
• Compact dimensions: 5.12 inches high, 3.15 inches wide, 3.03 inches deep
• Suitable for indoor and outdoor industrial control applications

Compatibility

Designed as an OEM-style enclosure for standard 40 mm pushbutton operators used in industrial control station assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize all circuits before mounting or wiring the enclosure. Ensure all conduit entries and unused openings are properly sealed to maintain the NEMA 4 and NEMA 13 ratings. Verify that mounted operators do not exceed the enclosure cutout specifications before completing the assembly.
