Schneider Electric XAPG19501 Pushbutton Switch Enclosure

Product Description

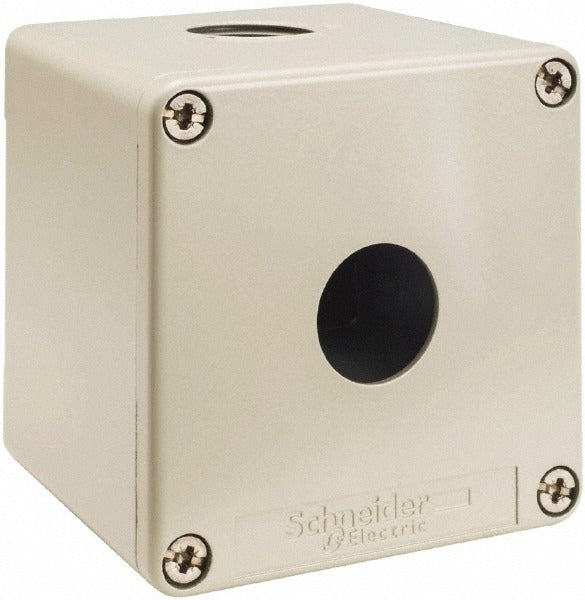

The SCHNEIDER ELECTRIC XAPG19501 is a single-hole pushbutton switch enclosure constructed from zinc alloy and rated for NEMA 4 and NEMA 13 environments. It is designed to house and protect pushbutton operator controls in industrial and commercial electrical installations. The enclosure measures 3.15 inches high by 3.15 inches wide by 3.03 inches deep and features a 1.58-inch hole diameter to accept standard 40 mm pushbutton operators. At 1.61 pounds, it offers solid construction suitable for demanding service conditions. Licensed electricians and industrial maintenance technicians are the primary installers of this type of enclosure.

This enclosure is suited for use in commercial and light industrial settings where protection against dust, oil, and water is required. The NEMA 4 rating indicates suitability for indoor and outdoor applications requiring protection from windblown dust and rain, splashing water, and hose-directed water. The NEMA 13 rating adds protection against oil and coolant seepage, making it a practical choice for machine tool panels, pump stations, and process control stations where fluid contamination is a concern.

Key Features

• Single-hole configuration with a 1.58-inch (40 mm) hole diameter for standard pushbutton operators
• Zinc alloy construction provides durable, corrosion-resistant housing
• NEMA 4 and NEMA 13 rated for protection against water, dust, and oil ingress
• Compact footprint at 3.15 inches high by 3.15 inches wide by 3.03 inches deep
• Lightweight at 1.61 pounds for straightforward panel mounting

Compatibility

Designed as an OEM-style replacement enclosure for single-operator pushbutton control stations using 40 mm mounting hole diameter operators in industrial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements for industrial control wiring. De-energize and lock out the circuit before mounting or wiring any control enclosure. Verify the mounting surface is flat and structurally sound to maintain the NEMA 4 and 13 environmental seal. Do not overtighten hardware or modify the enclosure opening, as doing so may compromise the integrity of the environmental rating.
