Schneider Electric XAPG19201 Pushbutton Switch Enclosure

Product Description

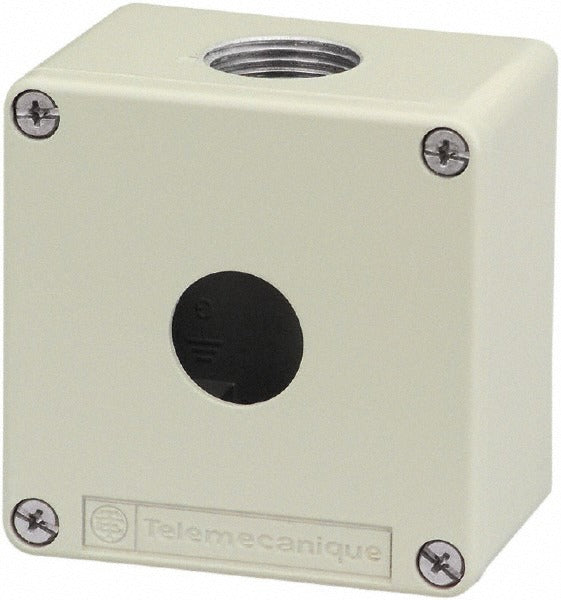

The SCHNEIDER ELECTRIC XAPG19201 is a single-hole pushbutton switch enclosure constructed from zinc alloy and rated for NEMA 4 and NEMA 13 environments. It is designed to house pushbutton operator controls in industrial and commercial electrical installations where protection against dust, oil, and water is required. The enclosure measures 3.15 inches high by 3.15 inches wide by 2.03 inches deep and accepts a single pushbutton operator through a 1.58-inch diameter hole. Licensed electricians and industrial maintenance technicians install this enclosure as part of control panel assemblies and machine operator stations.

This enclosure suits industrial control applications where operators need a rugged, oil-tight housing for pushbutton devices. The zinc alloy body provides durability in manufacturing, processing, and mechanical equipment environments. Its NEMA 4 and NEMA 13 ratings make it appropriate for washdown-adjacent locations and areas with airborne oil or coolant mist. It is typically used in standalone operator stations or as a replacement enclosure for existing control setups requiring a compact, single-station footprint.

Key Features

• NEMA 4 and NEMA 13 dual rating for protection against dust, splashing water, and oil
• Zinc alloy construction for impact resistance in industrial environments
• Single-hole layout with a 1.58-inch diameter opening for standard pushbutton operators
• Compact profile at 3.15 inches high by 3.15 inches wide by 2.03 inches deep
• Lightweight at 1.18 pounds for easy panel mounting or surface installation

Compatibility

Designed as an OEM-style replacement enclosure for single-hole pushbutton control stations requiring a 1.58-inch operator cutout and NEMA 4 or NEMA 13 environmental ratings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. De-energize all circuits before opening or mounting the enclosure and verify lockout/tagout procedures are followed. Ensure the mounting surface is flat and that all conduit entries are properly sealed to maintain the NEMA 4 and NEMA 13 ratings. Do not exceed the hole diameter specification when drilling additional knockouts or modifying the enclosure body.
