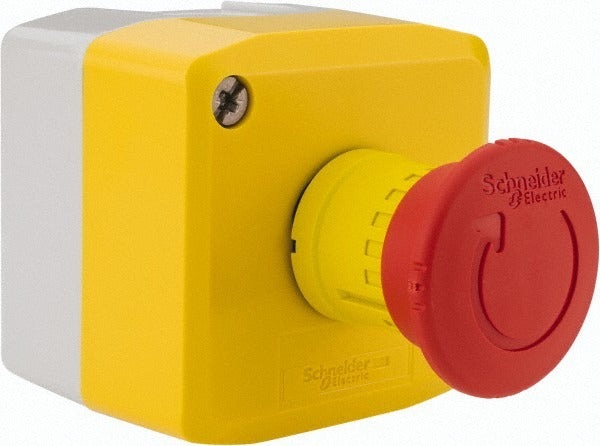

Schneider Electric XALK178GH7 Push-button Control Station

Product Description

The SCHNEIDER ELECTRIC XALK178GH7 is a push-button control station designed for industrial control panel and machinery applications. It features a red mushroom head operator with a turn-to-release switch action and a NO/2NC contact configuration, making it a standard choice for emergency stop and control circuits. Rated NEMA 4X and 13 with IP66 ingress protection, the unit resists dust, oil, and water intrusion. It complies with UL 508, CSA C22.2 No. 14, and multiple EN/IEC standards. Licensed electricians and industrial maintenance technicians are the primary installers. The station ships as a single operator assembly with no legend marking.

The XALK178GH7 is suited for use on industrial machinery, manufacturing lines, and automated equipment where a hardwired emergency stop or control point is required. Its NEMA 4X and 13 dual rating makes it appropriate for both indoor and washdown environments. The turn-to-release mushroom head configuration meets common machine safety requirements for latching stop functions in light industrial and heavy manufacturing settings.

Key Features

• Turn-to-release mushroom head operator for latching stop circuit applications
• NO/2NC contact configuration for flexible control circuit wiring
• NEMA 13 and 4X dual rating with IP66 ingress protection against dust and liquids
• Compliant with UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-5, EN/ISO 13850, and RoHS
• Red color for immediate visual identification as a stop or emergency control point
• Single operator assembly with no legend for custom labeling in the field

Compatibility

Designed as an OEM-style replacement or new-installation push-button control station for industrial control enclosures and machinery requiring a NEMA 4X/13-rated, turn-to-release mushroom head operator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and any applicable local electrical codes. De-energize and lock out the control circuit before mounting or wiring the station. Verify contact configuration against the control circuit diagram before completing wiring. Confirm enclosure cutout dimensions match the station body dimensions prior to final mounting.
