Schneider Electric XALD351H29H7 Control Station

Product Description

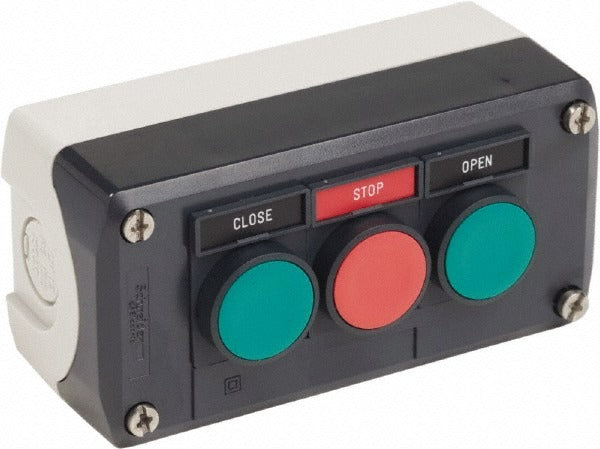

The SCHNEIDER ELECTRIC XALD351H29H7 is a three-operator momentary push-button control station rated for demanding industrial environments. It features Open, Close, and Stop legend-marked operators with a flush push-button design and a 2NO/NC contact configuration. The gray enclosure carries NEMA 1, 13, 4, and 4X ratings, making it suitable for wash-down, dust-tight, and corrosive-environment applications. Electricians and industrial controls technicians install this station on motor control panels, conveyor systems, gate operators, and similar equipment where discrete, momentary command inputs are required. It weighs 0.67 pounds and measures 5.35 inches tall, 2.68 inches wide, and 2.52 inches deep.

This control station is intended for use in light industrial, commercial, and heavy-duty environments where NEMA 4X corrosion resistance or NEMA 13 oil-tight protection is required. Typical installations include motor starters, variable-frequency drive panels, material handling systems, and factory automation enclosures. The three-button Open, Close, Stop layout is a standard configuration for valve actuators, roll-up door operators, and conveyor control circuits. Licensed electricians handling three-phase motor control or low-voltage control wiring are the primary installers.

Key Features

• Three flush momentary push-button operators with Open, Close, and Stop legends
• 2NO/NC contact configuration supports standard motor control logic
• NEMA 1, 13, 4, and 4X enclosure ratings for wash-down and corrosive environments
• Gray enclosure finish standard for industrial control panels
• Certified to UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and multiple additional standards
• Compact footprint at 5.35 inches tall by 2.68 inches wide by 2.52 inches deep

Compatibility

Designed as an OEM-style replacement or direct-fit control station for industrial motor control and automation panel applications requiring a three-button momentary Open, Close, Stop operator in a NEMA 4X-rated enclosure.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize all circuits at the disconnect or breaker before wiring the control station or opening the enclosure. Verify contact configuration and legend orientation before final mounting. Confirm that the NEMA enclosure rating of the control station matches the environmental rating required by the installation location.
