Schneider Electric XALD321S1H7 Push-button Control Station

Product Description

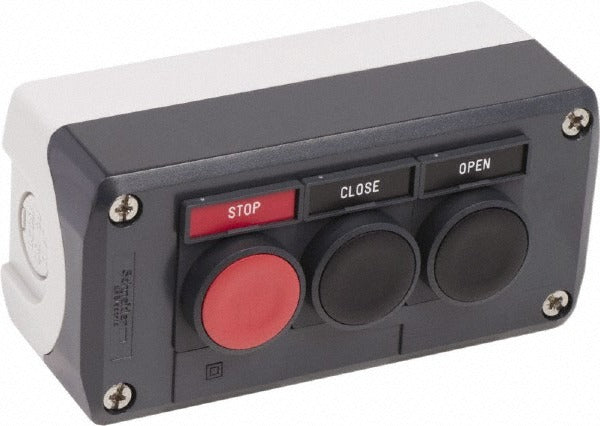

The SCHNEIDER ELECTRIC XALD321S1H7 is a three-operator, momentary push-button control station designed for industrial and commercial control circuits. It features flush push-button operators labeled Open, Close, and Stop, with a 2NO/NC contact configuration. The enclosure carries a NEMA 4X and NEMA 13 rating along with an IP66 ingress protection rating, making it suitable for wet, dusty, or washdown environments. Standing 5.35 inches tall, 2.68 inches wide, and 2.52 inches deep, the gray enclosure is compact enough for panel-side or machine-mounted installations. Licensed electricians and industrial control technicians are the primary installers for this type of control station.

This control station is well suited for motor starter circuits, conveyor controls, valve actuator controls, and other three-function open-close-stop applications in manufacturing, water treatment, food processing, and similar industrial settings. Its momentary switch action means each button sends a brief signal to the downstream contactor or relay rather than latching in position, which is standard practice for motor control circuits in both residential and commercial industrial environments. The sealed enclosure makes it appropriate for outdoor or wash-down duty locations where moisture and particulate ingress are concerns.

Key Features

• Three flush push-button operators with Open, Close, and Stop legend markings
• Momentary switch action with 2NO/NC contact configuration
• NEMA 4X and NEMA 13 rated enclosure with IP66 ingress protection
• Gray enclosure measuring 5.35 inches H x 2.68 inches W x 2.52 inches D
• Certified to UL 508, CSA C22.2 No. 14, IEC/EN 60947-5-1, and CE Marked among others
• Lightweight at 0.66 pounds for straightforward panel or surface mounting

Compatibility

Designed as an OEM-style replacement or new-installation control station for industrial motor control and open-close-stop circuit applications requiring a NEMA 4X, NEMA 13, or IP66-rated enclosure with momentary push-button operators.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local codes. De-energize and lock out all circuits before wiring the control station. Verify that the contact configuration and legend markings match the downstream control circuit requirements before securing the enclosure. Do not exceed the contact ratings specified in the manufacturer documentation for the connected load.
