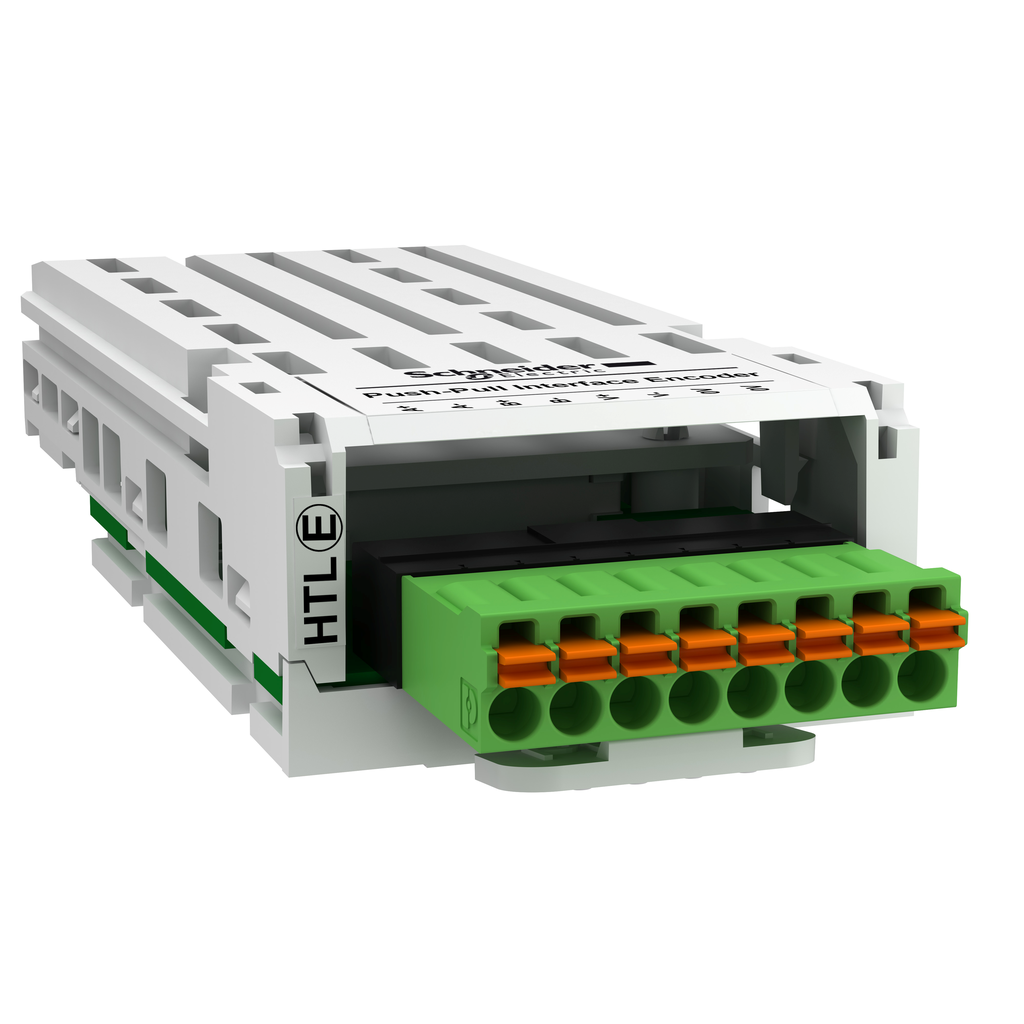

Schneider Electric VW3A3424 High Threshold Logic Encoder Interface Module

Product Description

Schneider Electric's VW3A3424 is a high threshold logic encoder interface module designed for variable speed drives in the Altivar range. This module is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It enhances drive performance by regulating speed accurately and improving response times during torque surges, regardless of motor load. The unit is secured against short circuits and overloads, ensuring reliable operation. With a weight of one hundred fifty grams, this module fits into a designated slot in the drive.

• Compatible with Altivar Machine ATV340 and ATV900 drives
• Improves speed regulation and torque accuracy
• Protected against short circuits and overloads

Product Highlights

Designed for Flux Vector Control and Vector Control operations, the VW3A3424 supports asynchronous and synchronous motors effectively.

Product Information

Standard Information

• Catalog Number: VW3A3424
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Encoder interface module
• Weight: 0.33 lb
• Net Weight: 0.15 kg
• Input Voltage: 12 V DC, 15 V DC, 24 V DC
• Connector Type: 1 removable spring connector
• Country of Origin: Indonesia
• GTIN: 03606481211491
