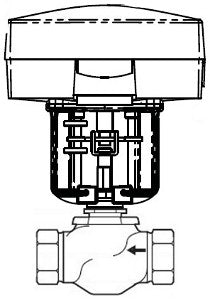

Schneider Electric VU-7213-674-4-01 Venta Globe Valve Assembly 24VAC/VDC (1/2 in) Replacement MPN

Product Description

The Schneider Electric VU-7213-674-4-01 is a half-inch Venta globe valve assembly designed for efficient fluid control in various applications. This electric valve operates with a variety of control signals, including floating and proportional signals, suitable for HVAC and plumbing systems.

• Body Size: 1/2 inch
• Configuration: 2-way
• Power Input Voltage: 24 VAC/VDC

Product Highlights

The valve features a straightway body pattern and utilizes brass trim for enhanced durability. It has a maximum close-off pressure of two hundred fifty PSI. The actuator type is designed for an automatic reset mechanism.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Stem Flow Action: Stem up open
• Flow Coefficient: 0.4 cv
• Actuator Type: Electric
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mA
• Force: 89 lbf
• Protection Rating: NEMA 1
• Material Trim: Brass
• Operating Fluid Temperature: -7 to 138 °C
• Saturated Steam Temperature: -7 to 138 °C
