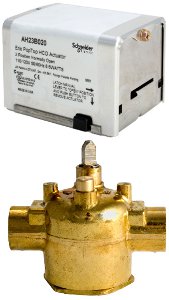

Schneider Electric VT2323H23A02A Valve Assembly 3/4 in Zone NPT

Product Description

The Schneider Electric VT2323H23A02A is a zone valve assembly designed for use in various HVAC applications. This unit features a three-quarter inch body size and a two-way configuration. The valve is constructed with a brass trim and utilizes a rotary actuator. It operates at a power input voltage of twenty-four volts AC.

• Body Size: 3/4 in
• Control Signal: 2-Position (On/Off)
• Actuator Type: Electric

Product Highlights

This valve assembly is suitable for a variety of applications, providing efficient control for heating and cooling systems. It has a close-off pressure rating of thirty PSI, ensuring reliable performance in demanding conditions.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 3.5 cv
• Control Media: Glycol 25 to 50% and Water
• Protection Rating: NEMA 1
• Auxiliary Switch: 1 SPDT
• IP Rating: IP10
• Ambient Air Temperature for Operation: 0-93.3 °C
• Spring Return Timing: Automatic reset
• Power Consumption: 7.5 VA AC
