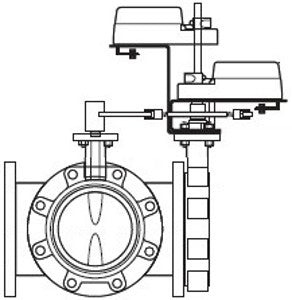

Schneider Electric VSUS-630C-E25D-L-16 Valve Actuator Assembly

Product Description

Schneider Electric VSUS-630C-E25D-L-16 is a valve actuator assembly specifically designed for use in butterfly valves. This assembly features a body size of six inches with a three-way mixing and diverting configuration, suitable for various applications. The actuator operates using electric power and supports proportional control signals.

• Body Size: Six inches
• Configuration: Three-way mixing/diverting
• Torque: Two hundred ten inch-pounds

Product Highlights

This valve actuator assembly is efficient for regulating flow in heating, ventilation, and air conditioning systems. It utilizes a robust design for durability and reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve actuator assembly

Technical Specifications

• Actuator Type: Electric
• Control Signal: Proportional
• Flow Coefficient: 1850 cv
• Close-Off Pressure: 50 PSI
• Power Input Voltage: 24 VAC/VDC
• Protection Rating: NEMA 2
• Body Material: Polyester coated cast iron
• Torque: 210 in-lb
• Temperature Range: -40 to 121 °C
• Auxiliary Switch: 2 SPDT
