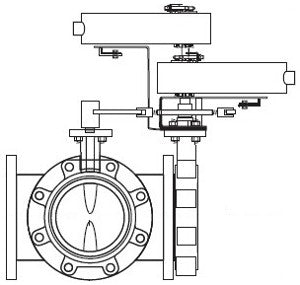

Schneider Electric VSFS-632C-556D-L-12 Valve Actuator Assembly 2-1/2 in

Product Description

Schneider Electric VSFS-632C-556D-L-12 is a reliable valve actuator assembly that facilitates smooth operation of butterfly valves. This electric actuator operates at a body size of two and one-half inches and features a robust three-way mixing and diverting configuration.

• Type: Electric actuator
• Torque: 133 in-lb
• Close-Off Pressure: 175 PSI

Product Highlights

This actuator enhances control for heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VSFS-632C-556D-L-12

Technical Specifications

• Body Size: 2-1/2 in
• Configuration: 3-Way Mixing/Diverting
• Connection: Flanged
• Body Style: Lug
• Disc Shape: Full
• Material Disc: Ductile Iron - Nylon 11 Coated
• Flow Coefficient: 282 cv
• Actuator Type: Electric
• Control Signal: Proportional
• Power Input Voltage: 24 VAC / 22-30 VDC
• Loss of Power Position: Normally Closed
• Protection Rating: NEMA 1, NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• Relative Humidity: 5-95 % non-condensing
• Actuator Rotation: 100 °
