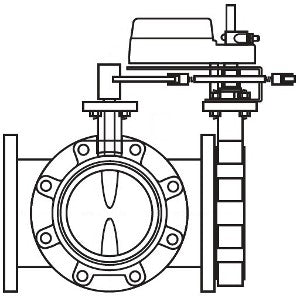

Schneider Electric VSFS-630C-E25-L-12 Valve Actuator Assembly

Product Description

Schneider Electric VSFS-630C-E25-L-12 is a versatile valve actuator assembly designed for effective control in fluid systems. This product features a two and a half inch body size along with a three-way mixing and diverting configuration. It includes a rotary actuator that operates using an electric signal, making it suitable for various applications.

• Body Size: 2-1/2 inches
• Type: Butterfly Valve Assembly
• Material: Ductile Iron with Nylon Coating

Product Highlights

This valve assembly ensures efficient fluid control with a maximum flow coefficient of 282 cv and operates under a close-off pressure of 175 PSI.

Product Information

Standard Information

• Actuator Type: Electric
• Power Input Voltage: 24 VAC/VDC

Technical Specifications

• Configuration: 3-Way Mixing/Diverting
• Torque: 210 in-lb
• Protection Rating: NEMA 2
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature For Operation: -20 to 50 °C
• Control Type: Automatic Reset
• Disc Shape: Full
