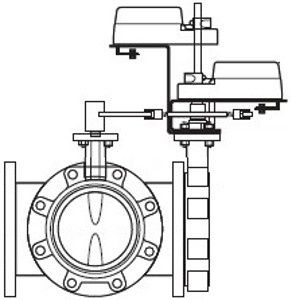

Schneider Electric VSF-630C-E25D-L-14 Valve Actuator Assembly

Product Description

Schneider Electric offers the VSF-630C-E25D-L-14 valve actuator assembly. This product features a four-inch body size and is designed for three-way mixing and diverting applications. It utilizes an electric actuator with a torque of two hundred ten inch-pounds and operates on a power input voltage of twenty-four VAC/VDC.

• Body Size: 4 inches
• Configuration: 3-Way Mixing/Diverting
• Type: Butterfly

Product Highlights

This valve assembly is suitable for various industrial applications and ensures reliable operation within specified temperature ranges.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VSF-630C-E25D-L-14
• Country of Origin: US

Technical Specifications

• Body Style: Lug
• Disc Shape: Full
• Material Disc: Ductile Iron - Nylon 11 Coated
• Flow Coefficient: 841 cv
• Close-Off Pressure: 175 PSI
• Control Signal: Proportional (0 to 10 VDC, 4 to 20 mA)
• Power Input Voltage: 24 VAC/VDC
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature for Operation: -20 to 50 °C
• Auxiliary Switch: 2 SPDT
