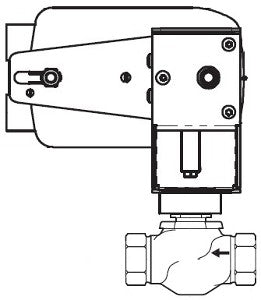

Schneider Electric VS-7213-537-4-02 SmartX Globe Valve Assembly 1/2 in 2-Way MS40-7043-501

Product Description

Schneider Electric VS-7213-537-4-02 is a SmartX globe valve assembly designed for various applications. This valve features a body size of one half inch with a two-way configuration. The stem up action effectively controls the flow. It includes a proportional actuator for precise control.

• Body Size: 1/2 in
• Flow Coefficient: 1.3 cv
• Actuator Type: Electric

Product Highlights

This globe valve assembly provides reliable performance in fluid control systems. It is made with durable materials and designed for easy integration into existing systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Globe
• Body Pattern: Straightway
• Connection: NPT
• Close-Off Pressure: 250 PSI
• Control Signal: Proportional
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Auxiliary Switch: 1 SPDT
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature For Operation: -30 to 60 °C
• Relative Humidity: 5-95 % non-condensing
• Motor Type: Brushless DC motor
