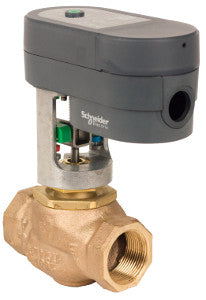

Schneider Electric VS-7213-110-4-08 SmartX Globe Valve Assembly 1 in 2-Way

Product Description

The Schneider Electric VS-7213-110-4-08 is a SmartX globe valve assembly designed for fluid control. It features a one inch body size and operates as a two-way valve, allowing for versatile installation options. The valve utilizes an electric actuator for modulating flow with controlled signals ranging from zero to ten volts direct current.

• Body size of one inch for standard compatibility
• Flow coefficient of fourteen cv
• Non-spring return actuator for reliable performance

Product Highlights

This globe valve assembly is equipped with a NEMA 2 protection rating, ensuring durability in various environments. It has an operating fluid temperature range of negative seven to one hundred thirty-eight degrees Celsius. The built-in LED status indicator provides clear operational feedback to users.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Valve-actuator assembly

Technical Specifications

• MPN: VS-7213-110-4-08
• Close-off pressure: 79 PSI
• Power input voltage: 24 VAC
• Actuator force: 78 lbf
• Ambient air temperature for operation: -5 to 55 °C
• Stroke length: 16.5 mm
• Relative humidity: 5 to 95 % non-condensing
• Body material: Bronze
