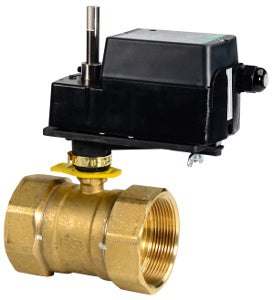

Schneider Electric VS-2253-506-9-52 Ball Valve Actuator Assembly 1-1/2 Inch

Product Description

Schneider Electric VS-2253-506-9-52 is a ball valve actuator assembly designed for precise control in HVAC applications. This unit features a one and a half inch body size and a two-way configuration, suitable for various fluid handling systems.

• Body Size: 1-1/2 inches
• Flow Coefficient: 41.3 cv
• Actuator Type: Electric

Product Highlights

This assembly includes a stainless steel trim, ensuring durability and resistance to corrosion. With a close-off pressure of 70 PSI, it provides reliable operation under moderate pressure conditions. The electric actuator features a proportional control signal with a range from zero to ten VDC.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Targeted Region: North America

Technical Specifications

• Configuration: 2-Way
• Connection: NPT
• Protection Rating: NEMA 2
• Torque: 70 in-lb
• Power Input Voltage: 24 VAC
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Temperature for Operation: -31.6 to 54.4 °C
• Seat Leakage: Port A: Class IV (0.01 %)
• Current Consumption: 3.3 VA AC
• Relative Humidity: 5-95 % non-condensing
