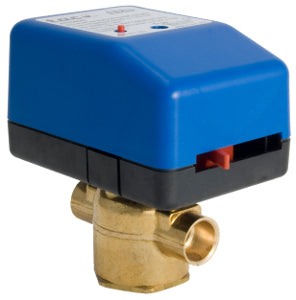

Schneider Electric VM2252P33A000 Valve Assembly 2-Way Flare Connection

Product Description

Schneider Electric VM2252P33A000 is a valve assembly designed for zone applications. This valve features a two-way configuration and a flare connection suitable for multiple flow control scenarios.

• Body Size: 1/2 inch
• Flow Coefficient: 2 cv
• Control Signal: Proportional

Product Highlights

This valve is suitable for controlling glycol and water mixtures in HVAC systems. It is equipped with an electric actuator (AP33A000) allowing for precise adjustments based on a control signal ranging from zero to ten volts DC or four to twenty milliamps DC.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Close-Off Pressure: 50 PSI
• Power Input Voltage: 24 VAC
• Control Media: Glycol (25 to 60%) and Water
• Control Type: Automatic reset
• Material Trim: Brass
• Protection Rating: NEMA 1
• Ambient Air Temperature for Operation: 1.6 to 51.6 °C
• Relative Humidity: 5 to 95% non-condensing
