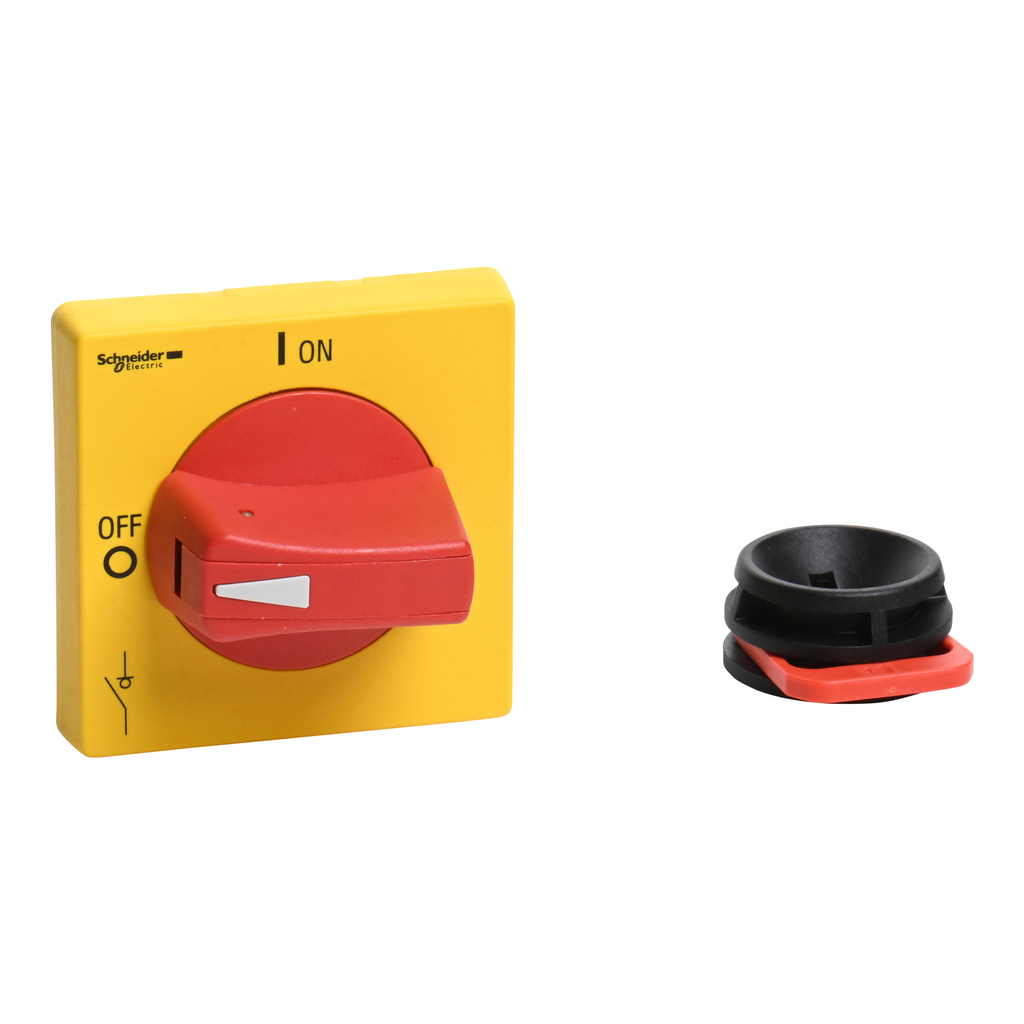

Schneider Electric VLSH2H5R Disconnect Switch

Product Description

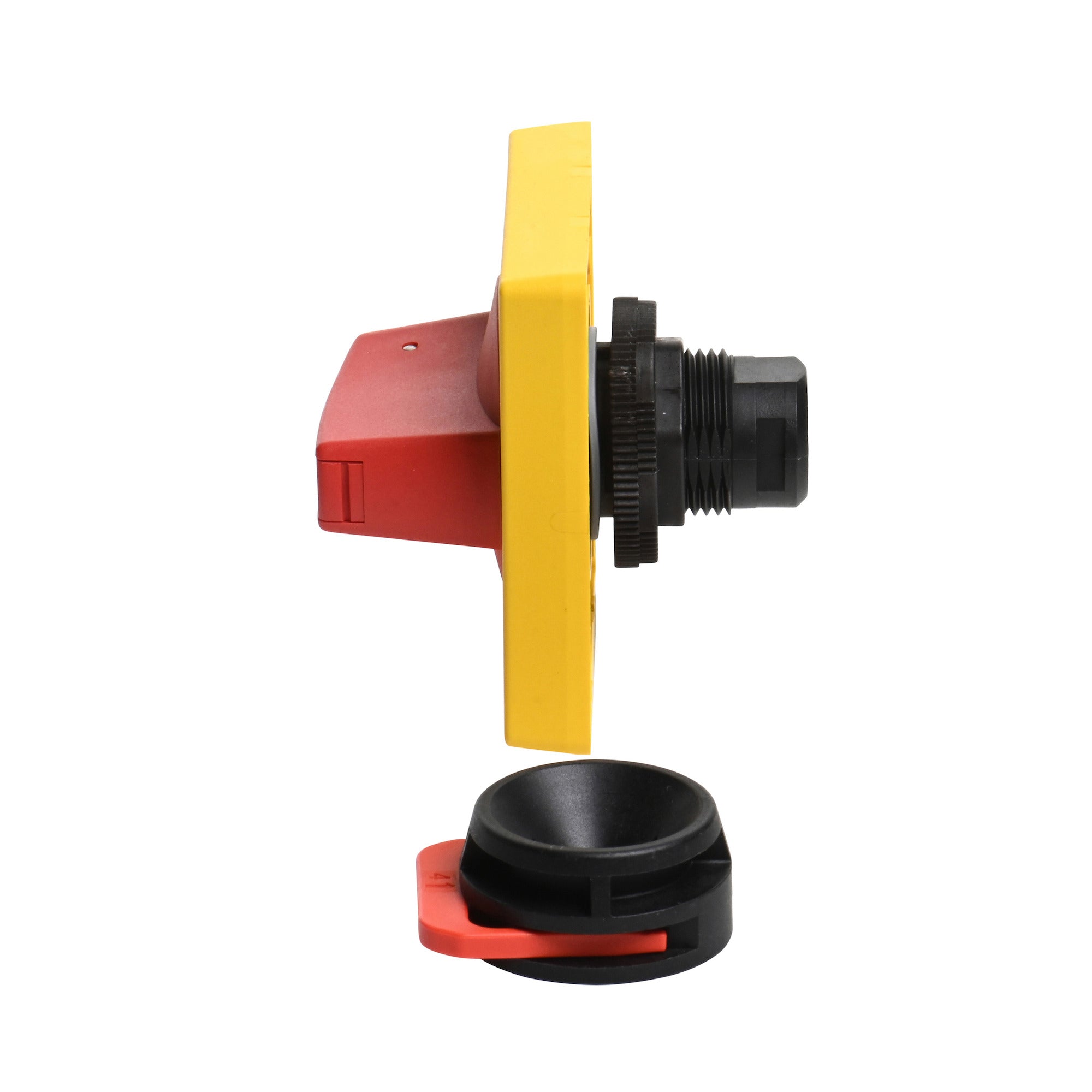

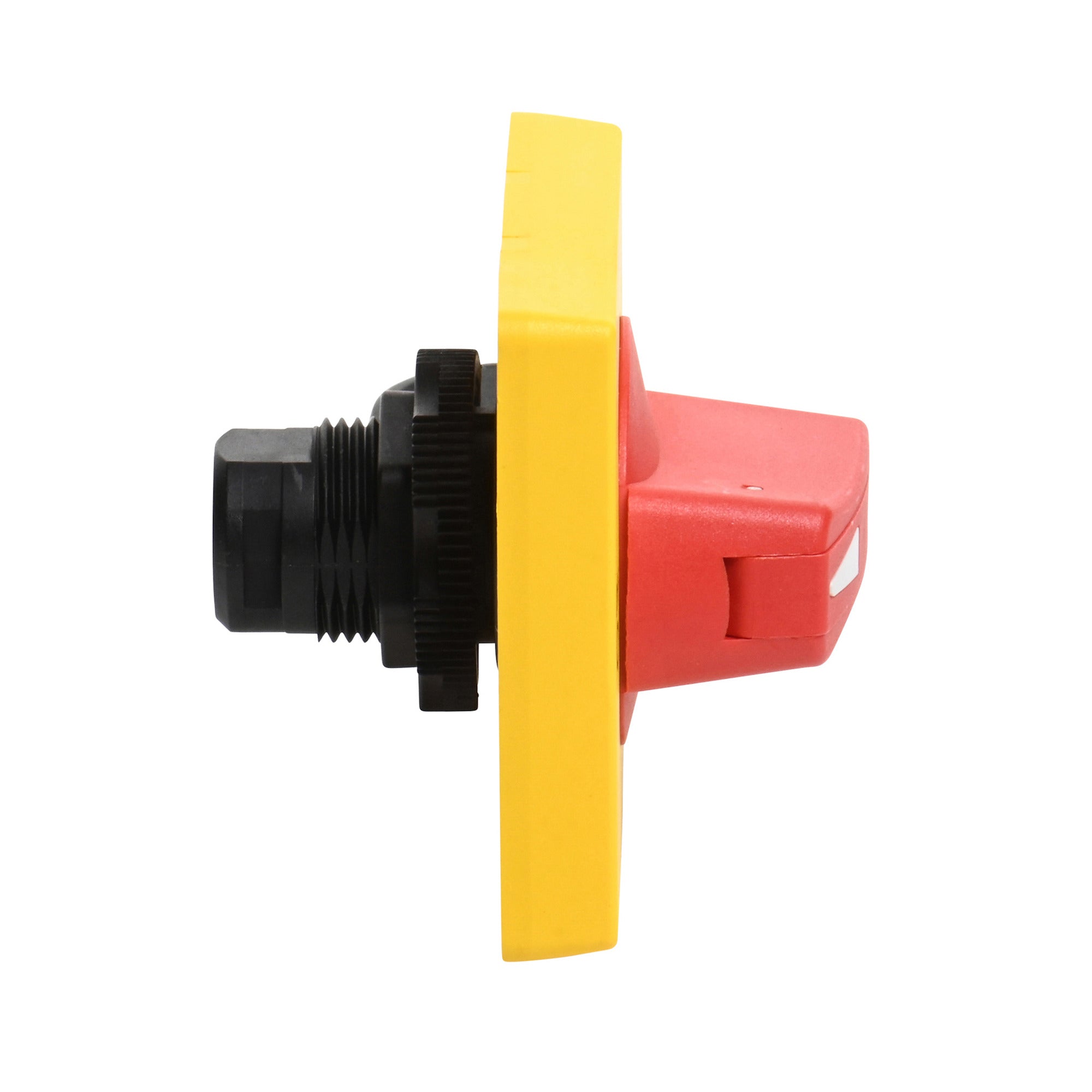

The Schneider Electric VLSH2H5R disconnect switch is designed for various control systems, including material handling, HVAC, pumping, solar energy, and mining. It supports applications ranging from sixteen amps to one hundred twenty-five amps. The UL508 compliant switches provide reliable performance in motor disconnect situations. Notable features include a red rotary handle compatible with VLS3P DIN rail mount switches and a mounting hole that fits 0.89 inches (twenty-two point five millimeters). The rotary handle accommodates one to three padlocks with diameters between zero point sixteen and zero point thirty-one inches. The dimensions of the handle are two point fifty-six inches tall, two point fifty-six inches wide, and two point eighty-five inches deep, with a weight of zero point sixteen pounds.

• UL508 and UL98 compliant
• Fits a standard hole size of 0.89 inches
• NEMA rated for various environments

Product Highlights

This product is suitable for both industrial and commercial applications, ensuring safety and compliance in electrical installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: VLSH2H5R

Technical Specifications

• Height: 2.56 inches
• Width: 2.56 inches
• Depth: 2.85 inches
• Weight: 0.16 lbs
• Actuator Color: Red
• Protection Rating: NEMA 1, 3R, 12, 4, and 4X
• IP Rating: IP65
• Country of Origin: Italy
