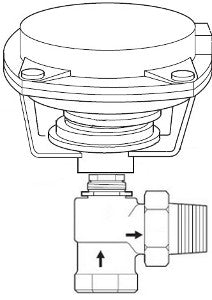

Schneider Electric VK-7211-301-3-04 Globe Valve Assembly 1/2 in

Product Description

Schneider Electric VK-7211-301-3-04 is a globe valve assembly designed for various fluid control applications. This valve features a half-inch body size and operates as a two-way valve in an angle configuration. It connects through NPT threads and is suitable for both pneumatic and manual control.

• Body Size: 1/2 inches
• Actuator Type: Pneumatic
• Close-Off Pressure: 250 PSI

Product Highlights

This valve is engineered for reliability in controlling fluid flow. Its brass trim ensures durability, and it has a flow coefficient of five. The actuator provides precision control with a range of three to six PSIG.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Pattern: Angle
• Flow Coefficient: 5 cv
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 3 to 6 PSIG
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Seating Seal Material: EPDM
• Valve Connection Size: 1/2 inches NPT
