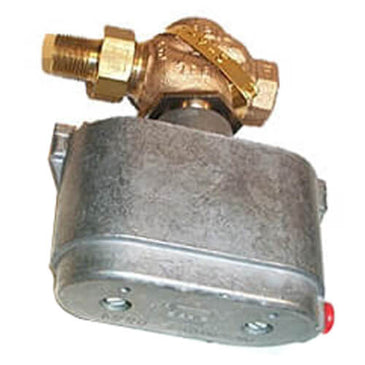

Schneider Electric VK-7211-202-4-09 valve actuator assembly 1-1/4 in globe valve

Product Description

The Schneider Electric VK-7211-202-4-09 is a valve actuator assembly designed for various applications in HVAC and industrial environments. This unit features a globe valve configuration with a one-and-a-quarter-inch body size. It is built to withstand operational pressures up to fifteen PSI, making it suitable for many systems.

• Body Size: 1-1/4 in
• Configuration: 2-Way
• Type: Globe

Product Highlights

This valve actuator assembly includes a pneumatic actuator that allows for precise control in a range of systems. Its straightway body pattern offers efficient flow management, while the NPT connection ensures secure installation.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Flow Coefficient: 20 cv
• Actuator Type: Pneumatic
• Control Signal: 2-Position, Proportional
• Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
• Loss of Power Position: Normally open
• Mechanical Movement: Linear
