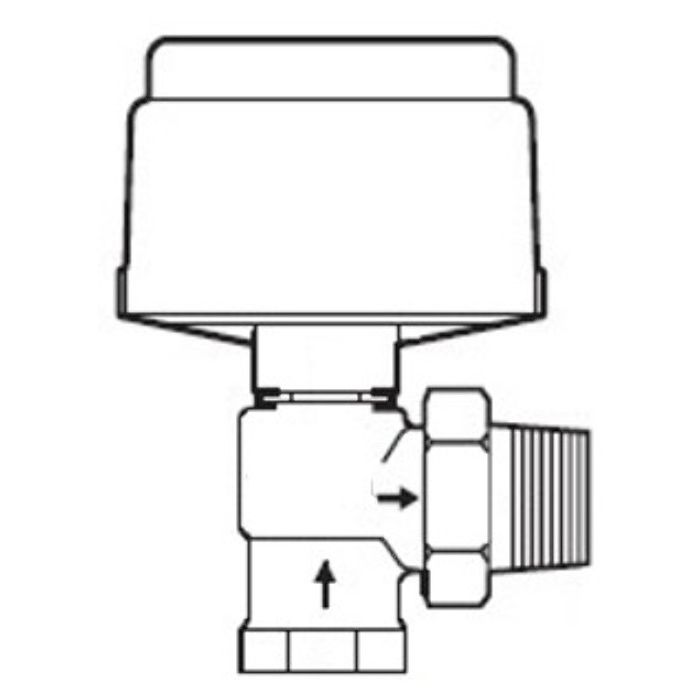

Schneider Electric VK-7211-201-3-4 Globe Valve Assembly 2-Way 3/4 in.

Product Description

The Schneider Electric VK-7211-201-3-4 is a 2-way globe valve assembly with a three-fourth inch union straight NPT connection. This valve assembly supports various applications, making it a versatile choice for professionals.

• Service compatible with Glycol 25 to 60%, steam, and water.
• Pneumatic actuator with adjustable spring ranges of 3 to 7 psig, 5 to 10 psig, and 8 to 13 psig.
• Features a replaceable beaded molded neoprene diaphragm.

Product Highlights

This globe valve assembly is designed for two-position, floating, or proportional control applications. It includes a sturdy die-cast aluminum housing for durability and reliable operation.

Product Information

Standard Information

• Service: Glycol 25 to 60%, steam, and water
• Flow Characteristic: Modified equal percentage

Technical Specifications

• Operating Conditions: Twenty degrees Fahrenheit to two hundred eighty-one degrees Fahrenheit (-7 C to 138 C)
• Stem Action: Up open
• Actuator Diameter: Six square inches
• Stroke Length: One-half inch
• Air Connections: One-eighth inch FNPT
