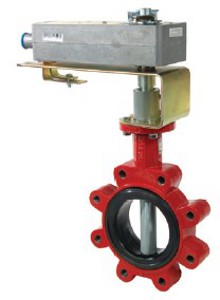

Schneider Electric VFFS-6220-556-L-11 Valve Actuator Assembly 2 in

Product Description

The Schneider Electric VFFS-6220-556-L-11 is a valve actuator assembly designed for reliable operation in fluid control applications. This product features a two-inch body size and a two-way configuration. It utilizes a butterfly valve design with a flanged connection.

• Body Size: Two inches
• Actuator: Electric with floating control signal
• Close-Off Pressure: Up to 175 PSI

Product Highlights

This valve actuator is ideal for HVAC systems and other fluid management systems where precise control is necessary. It operates efficiently across a wide range of temperatures and features robust construction to ensure long service life.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric, Rotary
• Control Signal: Floating
• Flow Coefficient: 144 cv
• Power Input Voltage: 24 VAC / 22 to 30 VDC
• Torque: 133 in-lb
• Protection Rating: NEMA 1, NEMA 2
• Ambient Air Temperature for Operation: -30 to 60 °C
• Ambient Air Temperature for Storage: -40 to 71 °C
• Switch Function: 2 SPDT
