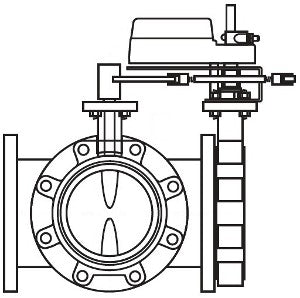

Schneider Electric VFF-630C-E25-L-12 Valve Actuator Assembly

Product Description

Schneider Electric VFF-630C-E25-L-12 is a valve actuator assembly designed for precise control in fluid management. The assembly features a two and one-half inch body size and is suitable for three-way mixing and diverting applications. Key features include a robust electric actuator and durable construction aimed at reliable operation in various environments.

• Body Size: 2-1/2 inches
• Type: Butterfly Valve
• Flow Coefficient: 282 cv

Product Highlights

This valve actuator assembly is ideal for HVAC and plumbing systems where effective fluid control is essential. It operates on a power input of twenty-four volts alternating current or direct current and utilizes a flanged connection for ease of installation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Connect Type: Flanged
• Close-Off Pressure: 175 PSI
• Torque: 210 in-lb
• Disc Material: Ductile Iron - Nylon 11 Coated
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -40 to 121 °C
• IP Degree of Protection: IP11
• Mechanical Movement: Rotary
• Seat Material: EPDM
• Assembly Components: Includes actuator and valve linkage
• Product Alert: Not for use with steam
