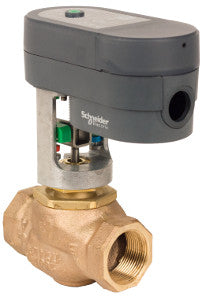

Schneider Electric VF-7213-110-4-06 SmartX Globe Valve Assembly 3/4 in 2-Way MG350V-24F

Product Description

Schneider Electric VF-7213-110-4-06 is a SmartX Globe Valve Assembly designed for efficient operation in various HVAC applications. This valve features a three-fourth inch body size and a two-way configuration, making it versatile for multiple systems.

• Body Size: 3/4 inch
• Flow Coefficient: 7.5 cv
• Actuator Type: Electric

Product Highlights

The valve assembly includes an electric actuator with a non-spring return feature, ensuring reliable performance in fluid control tasks. The construction utilizes brass for trim material, and it supports a wide temperature range.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-Way
• Stem Flow Action: Stem up A open
• Close-Off Pressure: 157 PSI
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Force: 78 lbf
• Mechanical Movement: Linear
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature For Operation: -5 to 55 °C
• Ambient Air Temperature For Storage: -40 to 70 °C
