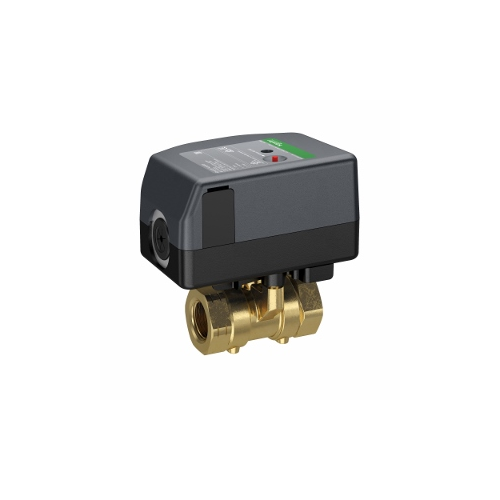

Schneider Electric VBB2N17+M332A01 SpaceLogic Ball Valve Assembly 3/4 2-Way Brass Trim Replacement MPN

Product Description

Schneider Electric VBB2N17+M332A01 is a versatile ball valve assembly designed for controlling fluid flow in HVAC and plumbing systems. This 3/4 inch, 2-way valve features a brass trim which ensures durability and reliability. It operates effectively with a close-off pressure of 130 psi and supports a power supply of 24 VAC.

• Suitable for automatic reset control applications.
• Rated for ambient temperatures from zero to sixty degrees Celsius.
• Features a 10 ft plenum cable for flexible installation.

Product Highlights

This valve assembly is specifically designed for commercial and residential systems that require precise flow management.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-actuator assembly

Technical Specifications

• Body Material: Forged brass
• Actuator Type: Rotary
• IP Protection: IP11
• Operating Fluid Temperature: -7 to 121 °C
• Relative Humidity: 5-95 % non-condensing
• Motor Type: Split capacitor synchronous motor
• Power Consumption: 2.4 VA AC
• Seating Leakage: Port A: Class IV (0.01 %)
