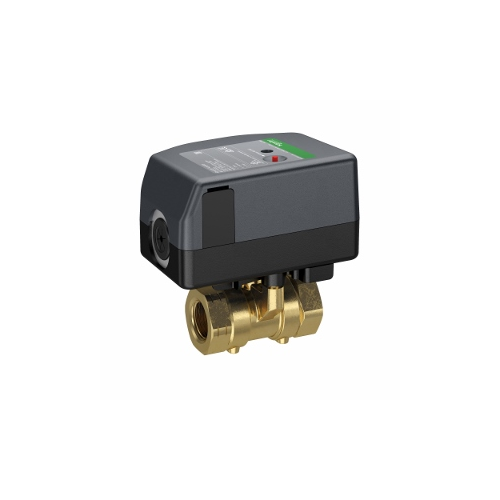

Schneider Electric VBB2N17+M332A00 SpaceLogic Ball Valve Assembly 3/4 2-Way Brass Trim

Product Description

The Schneider Electric VBB2N17+M332A00 is a ball valve assembly designed for precise flow control in HVAC systems and plumbing applications. This product features a two-way valve configuration made from forged brass, ensuring durability and reliability. It operates on a 24 VAC supply and includes a terminal block for easy connections. The valve has a close-off rating of 130 psi and a Cv rating of 10, making it suitable for a range of applications.

• Flow control with automatic reset function
• Durable forged brass construction
• Compact size for installation in tight spaces

Product Highlights

This valve assembly is ideal for controlling water flow in heating, cooling, and plumbing systems. It provides high reliability, ensuring efficient system performance.

Product Information

Standard Information

• Actuator Type: Rotary
• Operating Fluid Temperature: -7 to 121 °C

Technical Specifications

• Body Material: Forged brass
• Ambient Air Temperature For Operation: 0 to 60 °C
• Relative Humidity: 5 to 95 % non-condensing
• Power Consumption: 2.4 VA AC
• NEMA Degree Of Protection: NEMA 2
• IP Degree Of Protection: IP11
• Flow Pattern: Standard
• Close-Off Pressure: 130 psi
