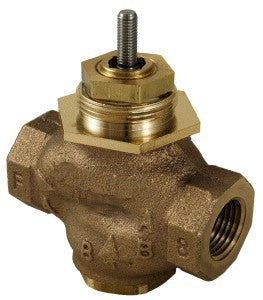

Schneider Electric VB-7263-0-4-06 Venta Globe Valve 3/4 in Replacement MPN

Product Description

The Schneider Electric VB-7263-0-4-06 is a globe valve designed for various applications. This valve has a three-fourths inch size and operates as a two-way valve with straight threaded NPT connections. It features a stem up closed design and utilizes stainless steel trim with soft seats for effective sealing.

• Body Size: 3/4 in
• Flow Coefficient: 7.5 Cv
• Control Media: Glycol, Steam, Water

Product Highlights

This valve is suitable for managing fluid flows in heating and cooling systems. It allows for controlled flow in glycol solutions as well as steam and water, making it versatile for HVAC applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Venta
• Product Series: VB-7200

Technical Specifications

• Body Material: Bronze
• Operating Fluid Temperature: -7 to 171 °C
• Saturated Steam Temperature: -7 to 171 °C
• Seat Material: Stainless steel 316
• Seating Seal Material: PTFE
• Seat Leakage: Port A: Class IV (0.01%), Port A: Class V
• Connection Type: NPT
• Valve Type: Globe
• Flow Coefficient: 7.5 cv
