SCHNEIDER ELECTRIC VAFS-630C-E60-L-19 VALVE ACTUATOR ASSEMBLIES
SCHNEIDER ELECTRIC VAFS-630C-E60-L-19 VALVE ACTUATOR ASSEMBLIES

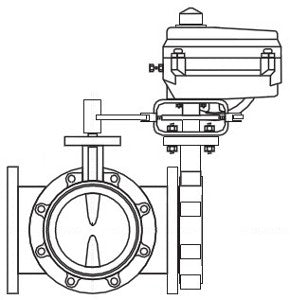

Schneider Electric VAFS-630C-E60-L-19 Valve Actuator Assembly 12 in

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: VAFS-630C-E60-L-19
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$28,604.31
$28,604.31
LTL Delivery

This product weighs 101 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Schneider Electric presents the VAFS-630C-E60-L-19 valve actuator assembly. This product features a twelve inch body size and a three-way mixing/diverting configuration. The actuator operates electrically and is suitable for a variety of applications.

  • Body size: 12 inches
  • Flow coefficient: 8077 cv
  • Close-off pressure: 175 PSI

Product Highlights

This valve actuator assembly is known for its reliable performance in HVAC systems and fluid handling applications. It is an excellent choice for controlling the flow of various fluids and is not suitable for steam.

Product Information

Standard Information

  • Body Material: Polyester coated cast iron
  • Actuator Type: Electric

Technical Specifications

  • Configuration: 3-Way Mixing/Diverting
  • Disc Shape: Full
  • Torque: 600 in-lb
  • Operating Fluid Temperature: -40-121 °C
  • Protection Rating: NEMA 4
  • Ambient Air Temperature For Operation: -40-65.5 °C
  • IP Degree Of Protection: IP56
  • Control Signal: 2-Position (On/Off)
