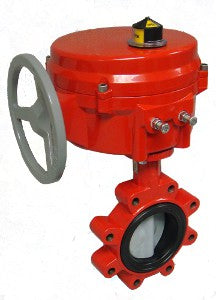

Schneider Electric VAFS-6200-F10-L-11 valve actuator assembly 2 in

Product Description

Schneider Electric VAFS-6200-F10-L-11 is a valve actuator assembly designed for butterfly valves. This unit features a two-inch size, and it operates on twenty-four volts alternating current power. The actuator provides a two-position control signal, which is suitable for on/off applications. It is built with a ductile iron disc that is coated in nylon and rated for a maximum close-off pressure of one hundred seventy-five PSI.

• Body material is polyester coated cast iron
• Flow coefficient rated at one hundred forty-four cv
• Torque capacity of six hundred inch-pounds

Product Highlights

This valve actuator assembly is ideal for HVAC and plumbing applications requiring reliable operation. It includes an electric actuator and mechanical linkage, with the ability to handle operating fluid temperatures from negative forty to one hundred twenty-one degrees Celsius.

Product Information

Standard Information

• Product Type: Valve actuator assembly
• Country of Origin: US

Technical Specifications

• Body Size: 2 in
• Configuration: 2-Way
• Connection: Flanged
• Flow Coefficient: 144 cv
• Close-Off Pressure: 175 PSI
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Power Input Voltage: 24 VAC
• Torque: 600 in-lb
• Protection Rating: NEMA 4
• Ambient Air Temperature for Operation: -40 to 65.5 °C
• IP Degree of Protection: IP56
