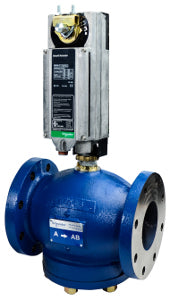

Schneider Electric VA-8213-576-5-16 Valve Actuator Assembly 6 in Globe Replacement

Product Description

Schneider Electric VA-8213-576-5-16 is a valve actuator assembly designed for efficient operation in various applications. This valve features a six-inch body size and operates as a two-way globe type. It has a flanged connection and allows stem flow action for effective control.

• Actuator Type: Electric with rotary mechanical movement
• Close-Off Pressure: 125 PSI
• Protection Rating: NEMA 1 and NEMA 4

Product Highlights

This assembly is built with brass trim that ensures durability, featuring a flow coefficient of 370 cv. The actuator operates on 24 VAC/VDC and provides 150 in-lb torque. It is suited for managing dampers and globe valves effectively.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 6 in
• Configuration: 2-Way
• Material Trim: Brass
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Torque: 150 in-lb
• Mechanical Movement: Rotary
• Loss of Power Position: Normally Open
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -31.6 to 60 °C
• Relative Humidity: 5-95 % non-condensing
