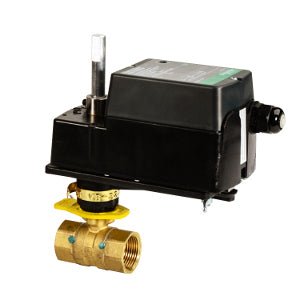

Schneider Electric VA-2253-831-9-22 Ball Valve Actuator Assembly

Product Description

Schneider Electric VA-2253-831-9-22 is a reliable two-way ball valve actuator assembly designed for precise control in various applications. This assembly includes a one-inch body size, NPT connection, and stainless steel material trim. The actuator operates on 24 VAC or 20 to 30 VDC, making it suitable for diverse systems.

• Body size: 1 inch
• Flow coefficient: 9 cv
• Torque: 30 in-lb

Product Highlights

This valve actuator assembly features a spring return mechanism for reliable operation and is not suitable for steam applications. Rated for a close-off pressure of 100 PSI, it ensures effective sealing in systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 2-Way
• Close-Off Pressure: 100 PSI
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Spring Return
• Relay Type: Normally Closed
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Operative Temperature: -30 to 60 °C
• Ambient Storage Temperature: -40 to 71 °C
• Electrical Insulation Class: Class II
• Protection Rating: NEMA 2
• Power Consumption: 5.1 VA AC
• Torque Value: 30 lbf.in
• Motor Type: Brush DC Motor
