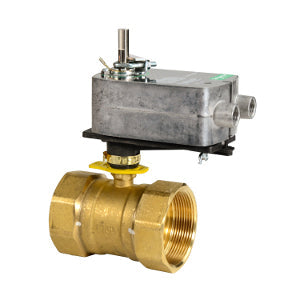

Schneider Electric VA-2253-527-9-15 Ball Valve Assembly 3/4 in 4.3 cv

Product Description

The Schneider Electric VA-2253-527-9-15 is a ball valve assembly designed for efficient flow control. This model features a three-quarter inch body size and operates as a two-way valve with a flow coefficient of 4.3 cv, making it suitable for various applications in HVAC systems.

• Power Input: 24 VAC or 22 to 30 VDC
• Torque Rating: 35 in-lb
• Protection Rating: NEMA 2

Product Highlights

This valve assembly includes a forged brass body, stainless steel trim, and a reliable electric actuator for precision control. It is equipped with a spring return feature for safety and has a close-off pressure of 130 PSI.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Not specified

Technical Specifications

• Body Size: 3/4 in
• Configuration: 2-Way
• Connection Type: NPT
• Flow Coefficient: 4.3 cv
• Close-Off Pressure: 130 PSI
• Actuator Type: Electric
• Control Signal: 2-Position
• Spring Return: Yes, Normally closed
• Ambient Temperature for Operation: -30-60 °C
• Relative Humidity: 5-95 % non-condensing
• Material: Die cast aluminium, PTFE seal
• Duty Cycle: 1
• Motor Type: Brush DC motor
