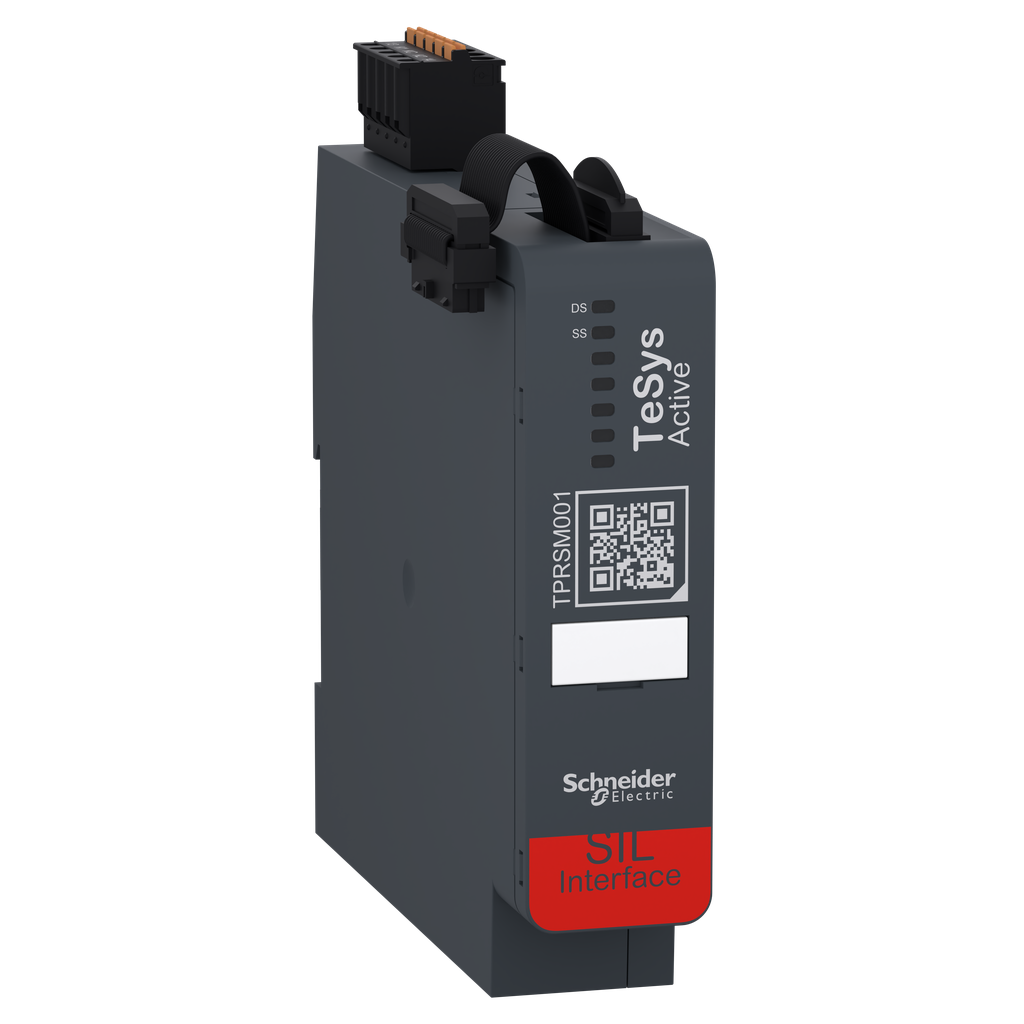

Schneider Electric TPRSM001 SQUARED TPRSM001 SIL interface modu

Product Description

The Schneider Electric TPRSM001 is a SIL interface module designed for safety-related systems. This module connects with a TPRBC bus coupler and integrates seamlessly into safety-related environments that conform to ISO 13849-1 standards. The TPRSM001 can interface with one or more SIL motor starters (TPRSS) to provide safety and control in automation applications.

This model features two isolated switching inputs with a common point, accepting voltage ranges from zero to twenty-four volts DC. It also includes one relay-type output with a normally open configuration for instantaneous operation, making it suitable for a variety of applications.

Its installation is straightforward, as it mounts on a DIN rail alongside other modules in the TeSys island configuration. The TPRSM001 is certified to multiple standards, including IEC, UL, CSA, and others. It is also compliant with the Green Premium standard, which ensures that it meets RoHS and REACh regulations.

• Two isolated switching inputs, accepting 0-24V DC
• One relay output type, potential-free
• DIN rail mountable with multi-standard certification

Product Highlights

This module enhances safety in automation systems by providing reliable control with certified components.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: United States

Technical Specifications

• Catalog Number: TPRSM001
• Input Voltage: 28.8 V
• Dimensions: 4.5 inches (height) x 1 inch (width) x 4.5 inches (depth)
• Current Consumption: 10 mA
• Net Weight: 0.159 kg
• Mounting Type: Horizontal and vertical on 35 mm symmetrical rail
• Warranty Length: 18 months
• RoHS Compliance: Yes
