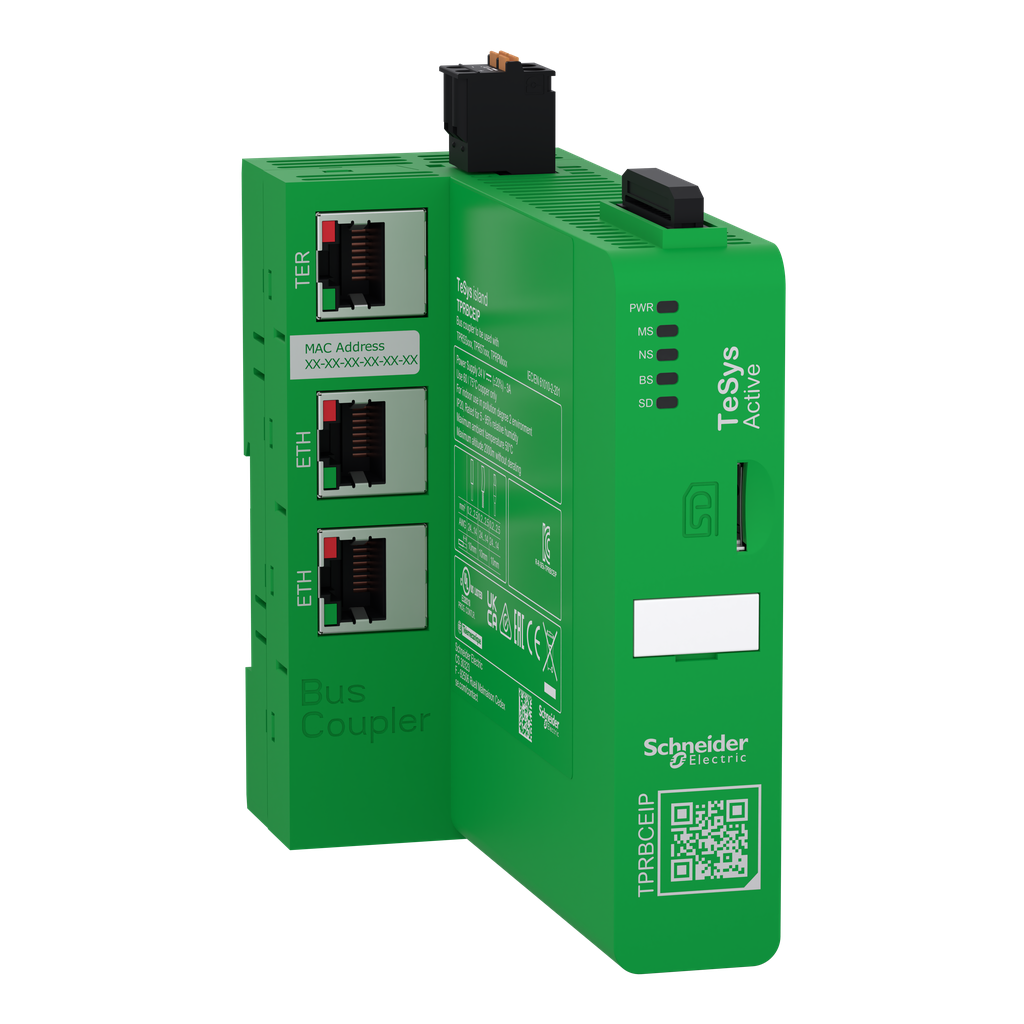

Schneider Electric TPRBCEIP Squared Bus Coupler TeSys 24VDC

Product Description

The Schneider Electric TPRBCEIP is a bus coupler designed for the TeSys island system. This module connects a TeSys island configuration, which consists of multiple starters, to an automation system via EtherNet/IP or Modbus TCP. It supports diagnostics and maintenance through an embedded web server. The coupler is powered by an external twenty-four volt direct current supply and features multiple ports, including two RJ45 ports for EtherNet/IP or Modbus TCP, one service port, a micro SD card port, and an internal bus connection. It mounts on a DIN rail alongside other modules in the configuration. The coupler adheres to multiple standards and certifications, ensuring compatibility and reliability.

• Connects TeSys island to automation systems
• Supports EtherNet/IP and Modbus TCP communications
• Provides multiple connectivity options with diagnostic capabilities

Product Highlights

The TPRBCEIP bus coupler enhances the TeSys island system, providing robust connectivity and ease of integration with modern automation setups.

Product Information

Standard Information

• Catalog Number: TPRBCEIP
• Manufacturer: Schneider Electric

Technical Specifications

• Dimensions: 114 mm depth x 50 mm width x 118 mm height
• Current Rating: 3 Amp
• Weight: 0.204 kg
• Mounting Type: Horizontal and vertical on 35 mm symmetrical rail
• Certifications: CSA, UL, Achilles Level 2, RoHS compliant
• Operating Temperature: -25 to 70 degrees Celsius
• Warranty Length: 18 months
• Country of Origin: Singapore
