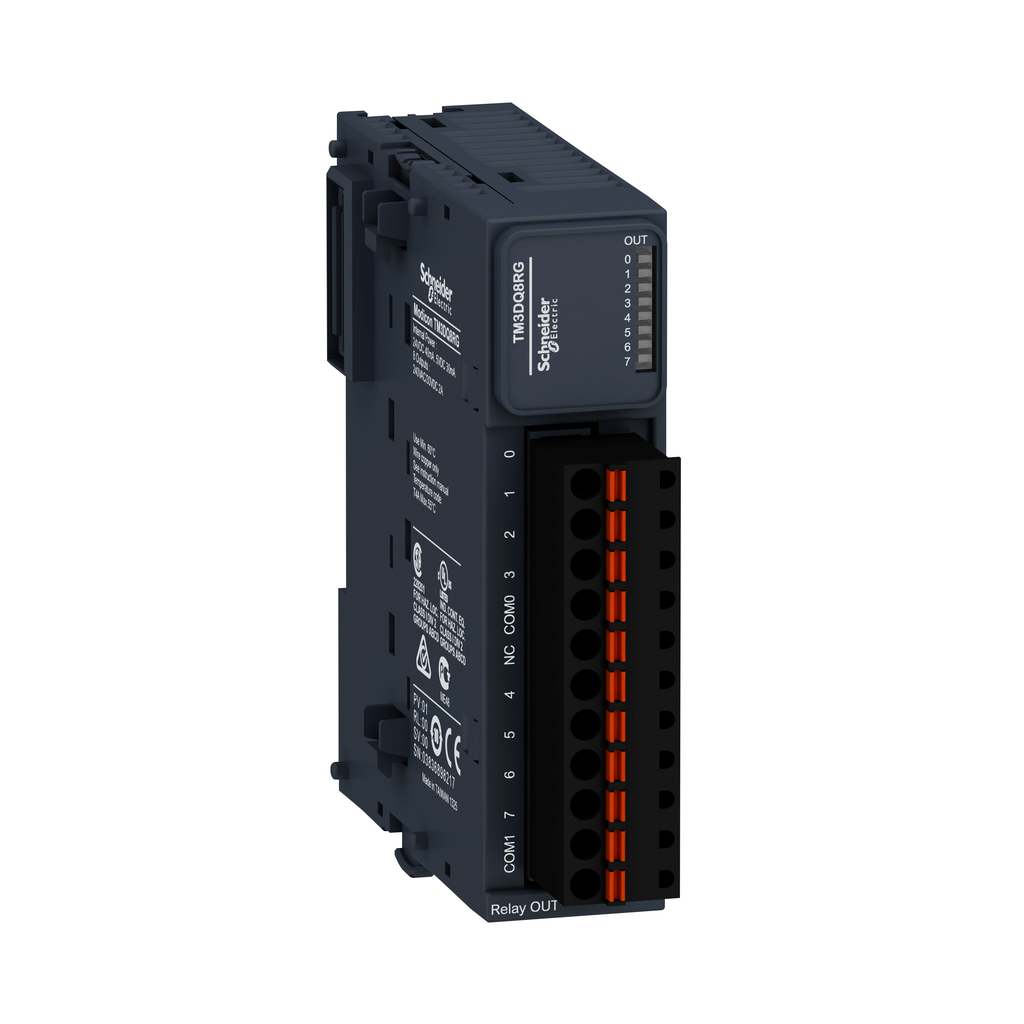

Schneider Electric TM3DQ8RG SQD TM3DQ8RG Discrete Output Module 240V AC 8 Relay Outputs

Product Description

Schneider Electric TM3DQ8RG is a discrete output module designed for Modicon programmable logic controllers. This model is part of the Modicon TM3 range and is compatible with M221, M241, M251, and M262 controllers. It offers eight relay outputs that can operate with either sink or source logic. The output specifications include an operating voltage of 240 volts AC and 30 volts DC, with a current draw of forty milliamps at twenty-four volts DC through a bus connector.

• Eight relay outputs with configurable logic.
• Insulation rated at 2300 volts AC between output and internal logic.
• IP20 enclosure with high mechanical durability.

Product Highlights

This module is designed to control devices like variable speed drives, ensuring a reliable operation. With its robust design, it features removable spring terminals for easy electrical connections and supports various mounting options including top hat rail type TH35.

Product Information

Standard Information

• Catalog Number: TM3DQ8RG
• Brand: Schneider Electric

Technical Specifications

• Depth: 84.6 mm
• Width: 27.4 mm
• Height: 90 mm
• Weight: 0.11 kg
• Output Voltage: 240V AC, 30V DC
• Current Consumption: 40 mA at 24V DC
• Response Time: 10 ms
• Operating Temperature: -10 to 35 degrees C (Vertical), -10 to 55 degrees C (Horizontal)
