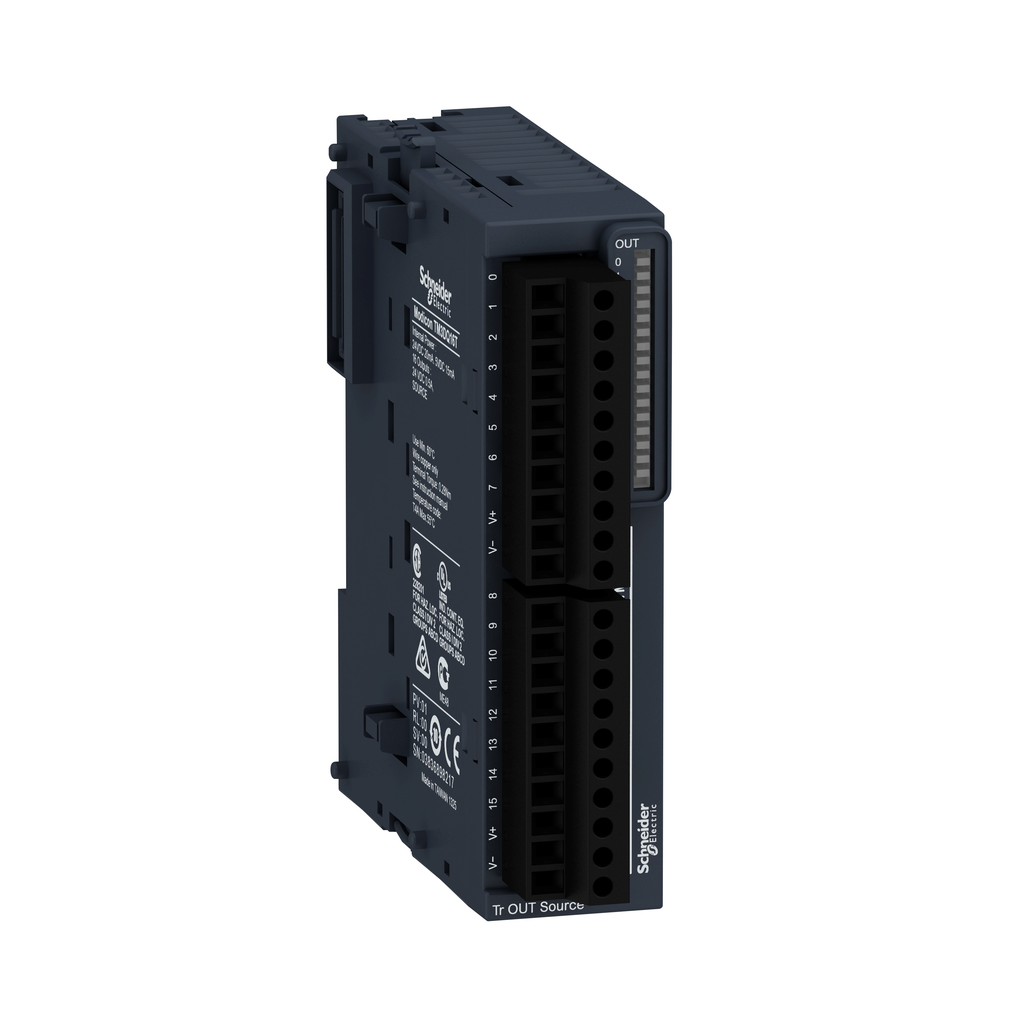

Schneider Electric TM3DQ16T SQD TM3DQ16T discrete output module

Product Description

Schneider Electric TM3DQ16T is a discrete output module with sixteen transistor outputs designed for Modicon controllers. This module is compatible with Modicon M221, M241, M251, and M262. Each output operates at a voltage of twenty-four volts DC and can handle a current of twenty milliamps. It provides insulation between outputs and internal logic, enhancing safety in various applications.

• Output voltage of 24V DC
• Compatible with Modicon controllers
• IP20 rated for protection

Product Highlights

This output module is designed for use in control and automation systems. It is suitable for controlling variable speed drives and devices that require discrete inputs. Installation is simplified with removable screw terminals.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: TM3DQ16T
• Width: 1.08 inches
• Depth: 3.33 inches
• Height: 3.54 inches
• Weight: 0.24 lb
• Country of Origin: Taiwan
• Operating Temperature: -10 to 35 degrees C (vertical), -10 to 55 degrees C (horizontal)
