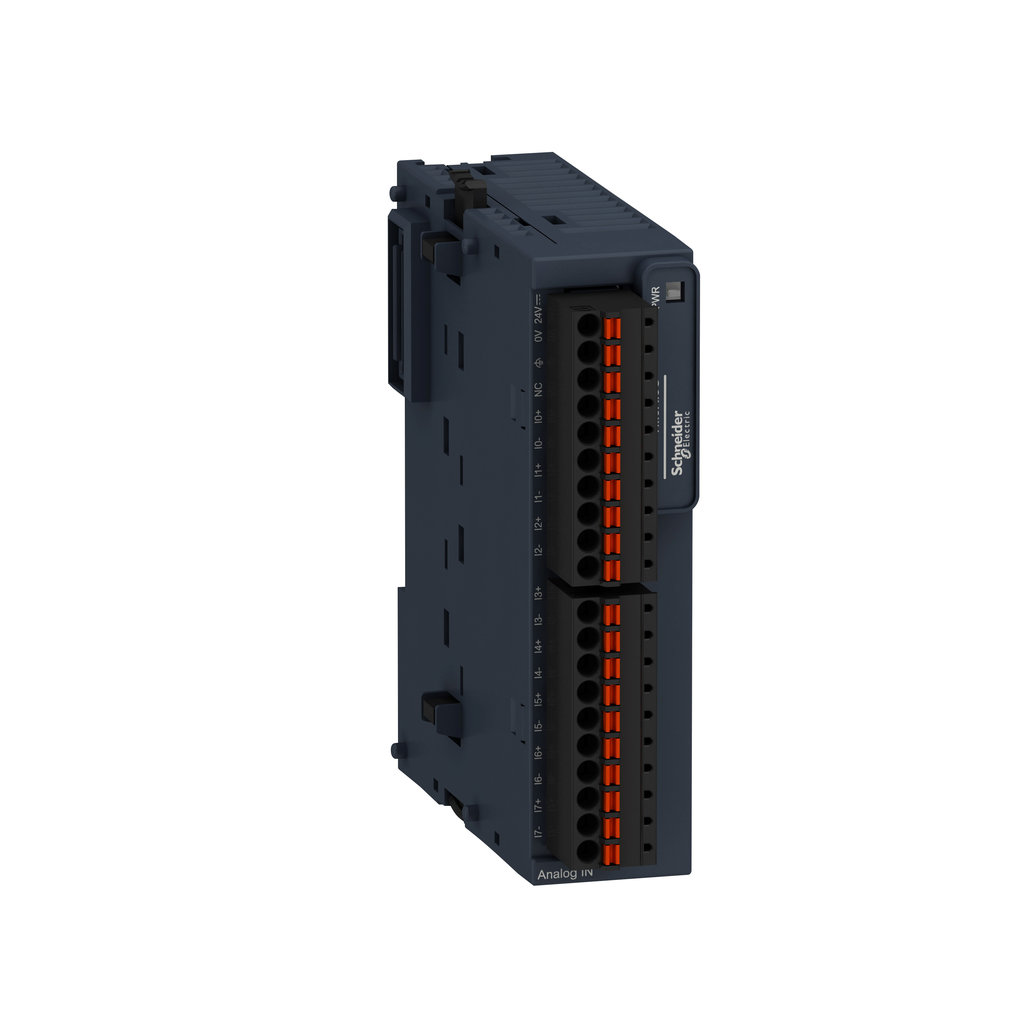

Schneider Electric TM3AI8G SQD TM3AI8G analog input module, Mo 24V DC (8 Inputs) Replacement MPN

Product Description

Schneider Electric's TM3AI8G is an analog input module designed for use with Modicon M221, M241, M251, and M262 PLCs. This module features eight inputs with a resolution of eleven bits plus sign and twelve bits. It operates at a rated supply voltage of twenty-four volts DC while consuming thirty-five milliamps at five volts DC with no load and forty-five milliamps at five volts DC under full load. It can control devices with current or voltage inputs and provides insulation of fifteen hundred volts AC between input and supply, along with five hundred volts AC between input and internal logic.

• Eight inputs with eleven plus sign and twelve-bit resolution
• Insulation rated at fifteen hundred volts AC
• Compatible with Modicon M221, M241, M251, and M262 controllers

Product Highlights

This module is engineered for control applications, supporting variable speed drives and more. Its robust design includes removable spring terminals for easy wiring and an IP20 enclosure for protection.

Product Information

Standard Information

• Brand: Schneider Electric
• Product ID: 1637633

Technical Specifications

• Catalog Number: TM3AI8G
• Width: 23.6 mm
• Depth: 70 mm
• Height: 90 mm
• Weight: 0.1 kg
• Operating Temperature: -10 to 55 degrees C (horizontal installation)
• Number of Channels: 8
• Input Voltage: 24 V
