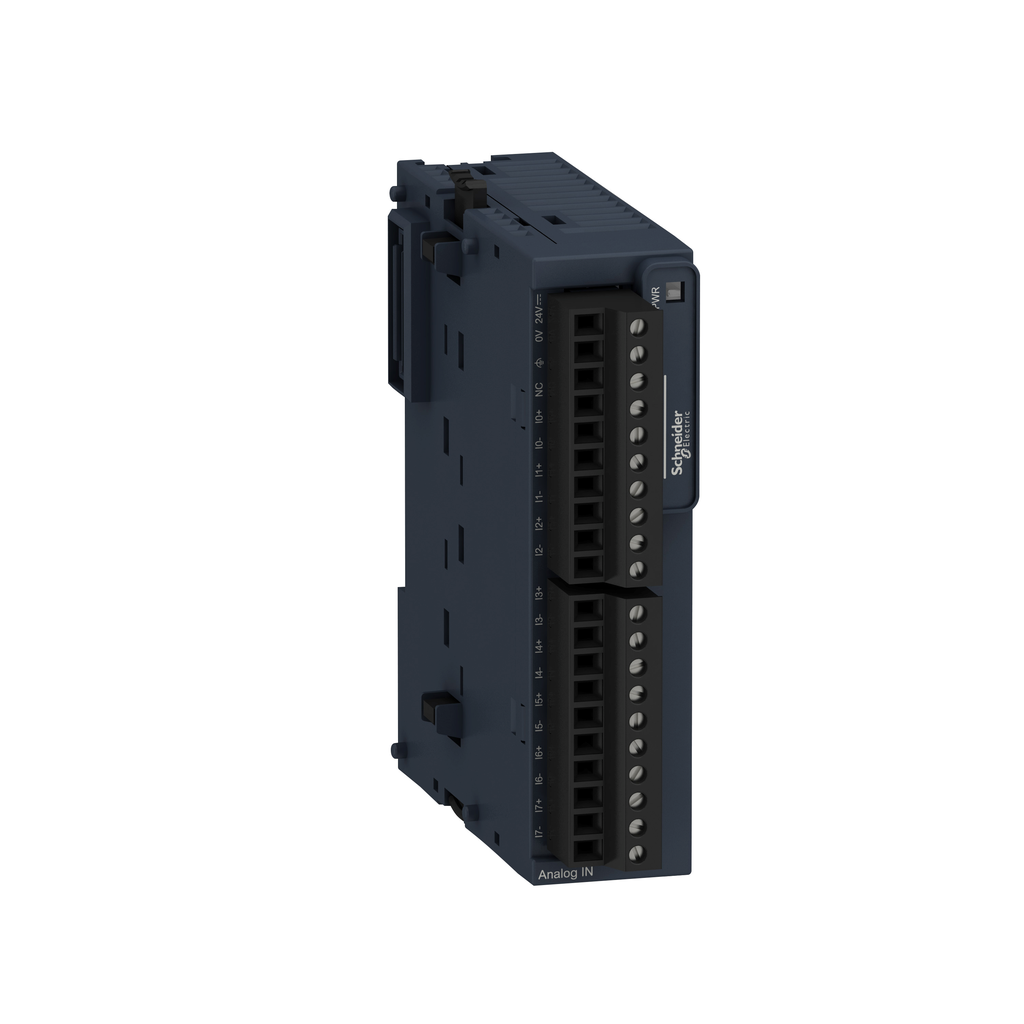

Schneider Electric TM3AI8 Square D TM3 8-Analog Input Module

Product Description

This module is a part of Schneider Electric's Modicon TM3 series. The TM3AI8 module has eight analog inputs with eleven bit plus sign and twelve bit resolution. Designed for use at a rated supply voltage of twenty-four volts DC, it consumes thirty-five milliamps at five volts DC under no load conditions. When fully loaded, this consumption rises to forty-five milliamps, while an external supply will require thirty milliamps at twenty-four volts DC.

The TM3AI8 is suitable for controlling variable speed drives or any device that uses a current or voltage input. It has insulation between input and supply rated at fifteen hundred volts AC, and between input and internal logic at five hundred volts AC. The device features removable screw terminals, allowing connections with a pitch of three point eighteen millimeters.

With an IP20 rating, it can withstand various installation environments. Dimensions are as follows: width of twenty-three point six millimeters, depth of seventy millimeters, and height of ninety millimeters, with a total weight of zero point eleven kilograms. This module is CE certified and adheres to EN/IEC 61131-2 and EN/IEC 61010-2-201 standards.

• Eight analog inputs
• Compatible with Modicon series controllers
• IP20 rated for general use

Product Highlights

The TM3AI8 module offers extensive analog input capabilities for various control applications, effectively enhancing the performance of Modicon controllers.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: TM3AI8
• Type: Analog input module
• Net Weight: 0.11 kg
• Width: 23.6 mm
• Depth: 70 mm
• Height: 90 mm
• Voltage: 24 V DC
• Number of Channels: 8
• Operating Temperature: -10 to 55 degrees Celsius
• Country of Origin: Japan
