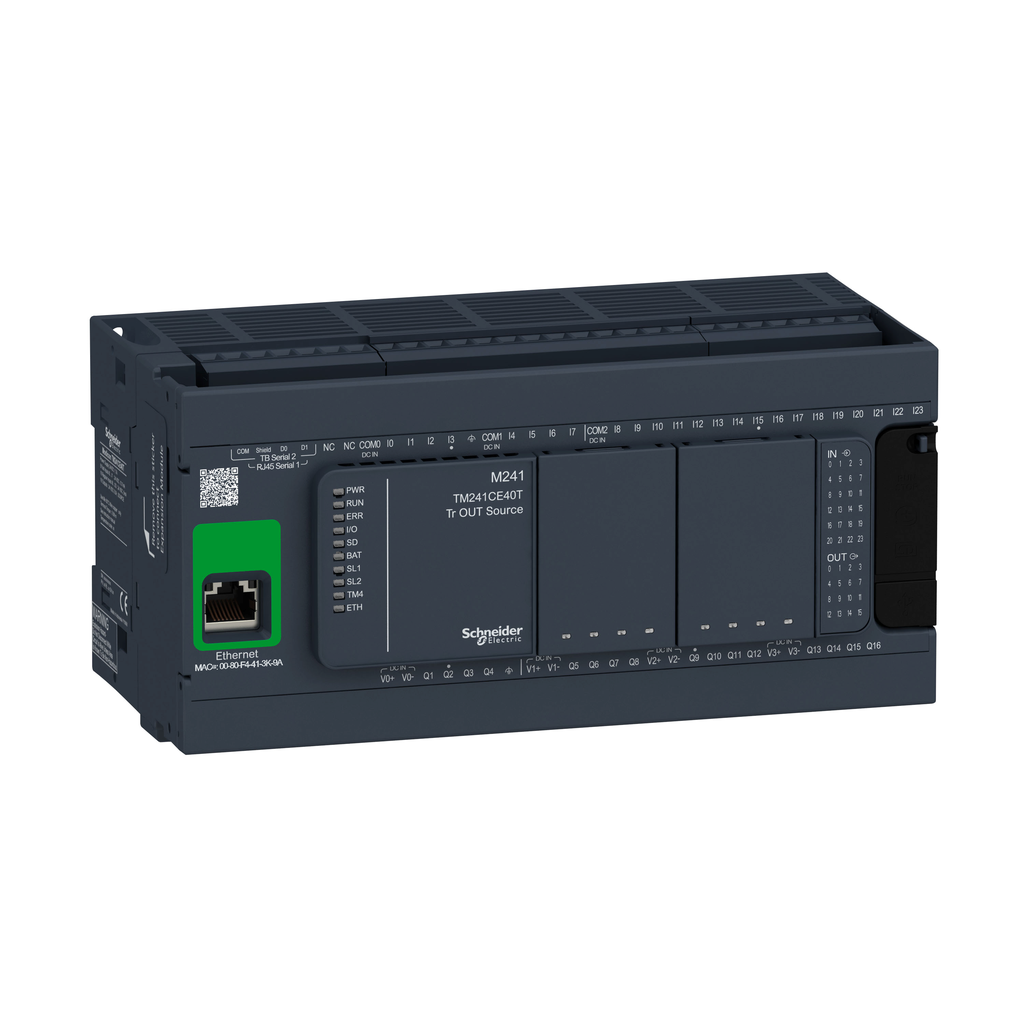

Schneider Electric TM241CE40T Logic Controller, Mo

Product Description

The Schneider Electric TM241CE40T is a logic controller designed for demanding applications. This controller offers 24 discrete inputs, 8 fast inputs, 16 transistor outputs, and 4 fast outputs. The rated supply voltage is 24V DC. It can provide an output current of 0.5A for transistor outputs and 0.1A for fast outputs. It integrates intuitive application-building features with an organized screen design.

Key connections include a USB port, RJ45 ethernet interface, and RS232/RS485 communication. The unit has 8MB program memory, 64MB system RAM, and a built-in 128MB flash storage for user program backup. The logic controller has an IP20 rating, with dimensions of 190mm in width, 95mm in depth, and 90mm in height, weighing 0.62kg.

The TM241CE40T meets various certifications and standards including CE and UL, making it suitable for high-performance applications. It also supports DIN rail mounting for easy installation.

• 24 discrete inputs with 8 fast inputs
• 16 transistor outputs and 4 fast outputs
• Integration with EcoStruxure Machine Expert for streamlined programming

Product Highlights

Designed for high-performance and compact machines that require precise control.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Indonesia

Technical Specifications

• Catalog Number: TM241CE40T
• Type: Logic Controller
• Operating Temperature: -10 to 55 degrees C (horizontal), -10 to 50 degrees C (vertical)
• Memory: 64MB RAM, 8MB program space
• Certifications: CE, UL 508, CSA
• Weight: 0.62kg
• Width: 190mm
• Depth: 95mm
• Height: 90mm
