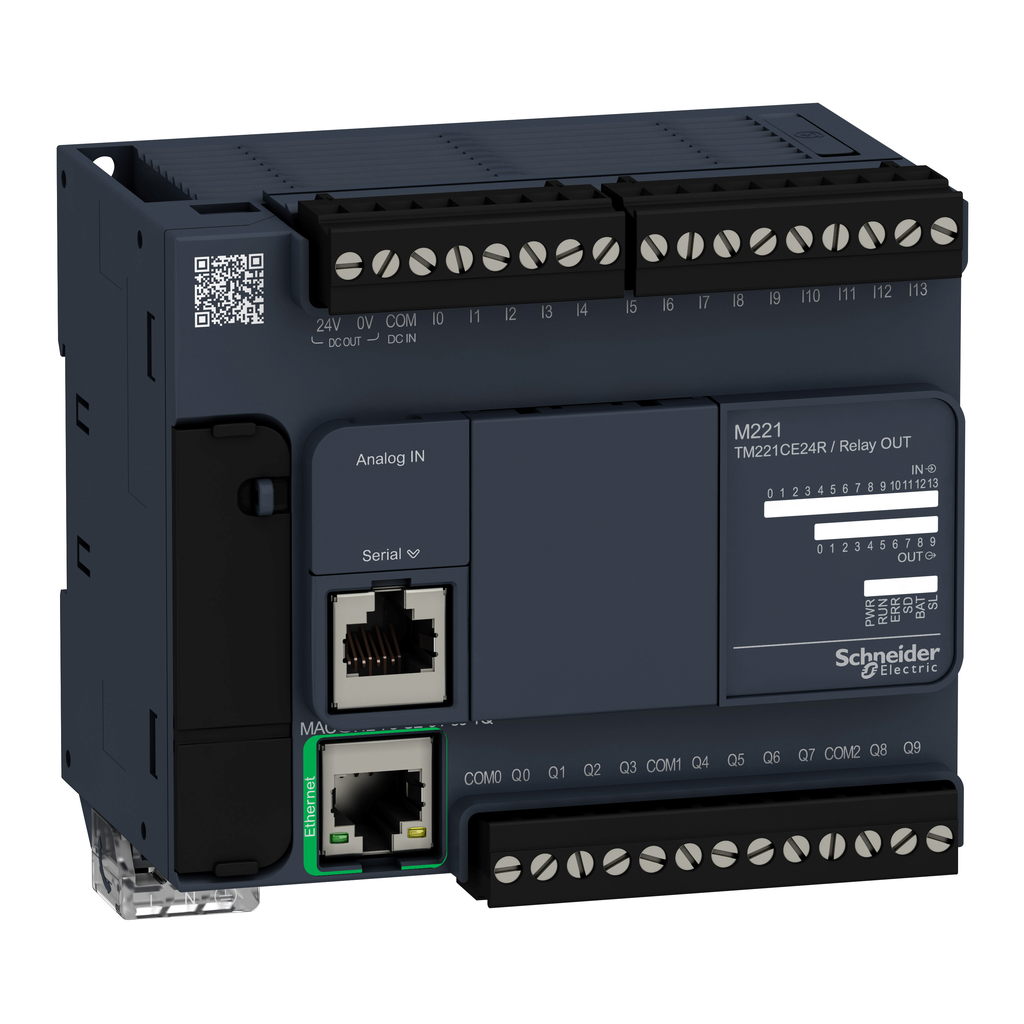

Schneider Electric TM221CE24R M221 Programmable Logic Controller 120 VAC

Product Description

The Schneider Electric TM221CE24R is a programmable logic controller designed for hardwired architectures. It supports fourteen discrete inputs and ten relay Ethernet outputs, offering a resolution of ten bits. The rated supply voltage ranges from one hundred to two hundred forty volts AC, capable of delivering output voltages of five to one hundred twenty-five volts DC and five to two hundred fifty volts AC. With an output current rating of two amps, the controller utilizes sink or source input logic for flexibility. The TM221CE24R minimizes installation requirements, making it versatile and easy to use.

Integrated connections include a USB port with a mini B USB 2.0 connector and an Ethernet port with an RJ45 connector. The controller operates at a frequency of fifty to sixty Hertz and features two hundred fifty-six kilobytes of internal RAM and built-in flash memory of two hundred fifty-six kilobytes. The memory can be expanded with an SD card capacity of two gigabytes. This product is IP20 rated and its compact size measures four inches in width, three inches in depth, and three and a half inches in height, with a weight of zero point eight seven pounds.

Certification includes CE, IACS E10, RCM, ABS, and CSA. It adheres to several standards such as EN/IEC 60664-1 and EN/IEC 61131-2. The TM221CE24R easily mounts on a DIN rail, suitable for various industrial applications, enhancing performance and profitability through user-friendly programming with SoMachine Basic.

• Designed for hardwired architectures with 14 inputs and 10 outputs
• Wide voltage compatibility: 100V to 240V AC
• Easy integration with USB and Ethernet connectivity

Product Highlights

This logic controller provides reliable operation and extensive features for automation needs.

Product Information

Standard Information

• Catalog Number: TM221CE24R
• Brand: Schneider Electric

Technical Specifications

• Rated Supply Voltage: 100V to 240V AC
• Output Voltage: 5V to 125V DC, 5V to 250V AC
• Output Current: 2A
• Memory: 256KB
• IP Rating: IP20
• Dimensions: 4 inches (W) x 3 inches (D) x 3.5 inches (H)
• Weight: 0.87 lb
• Certifications: CE, CSA, UL
