Schneider Electric TM221C24T Logic Controller Modicon 24 IO Replacement MPN

Product Description

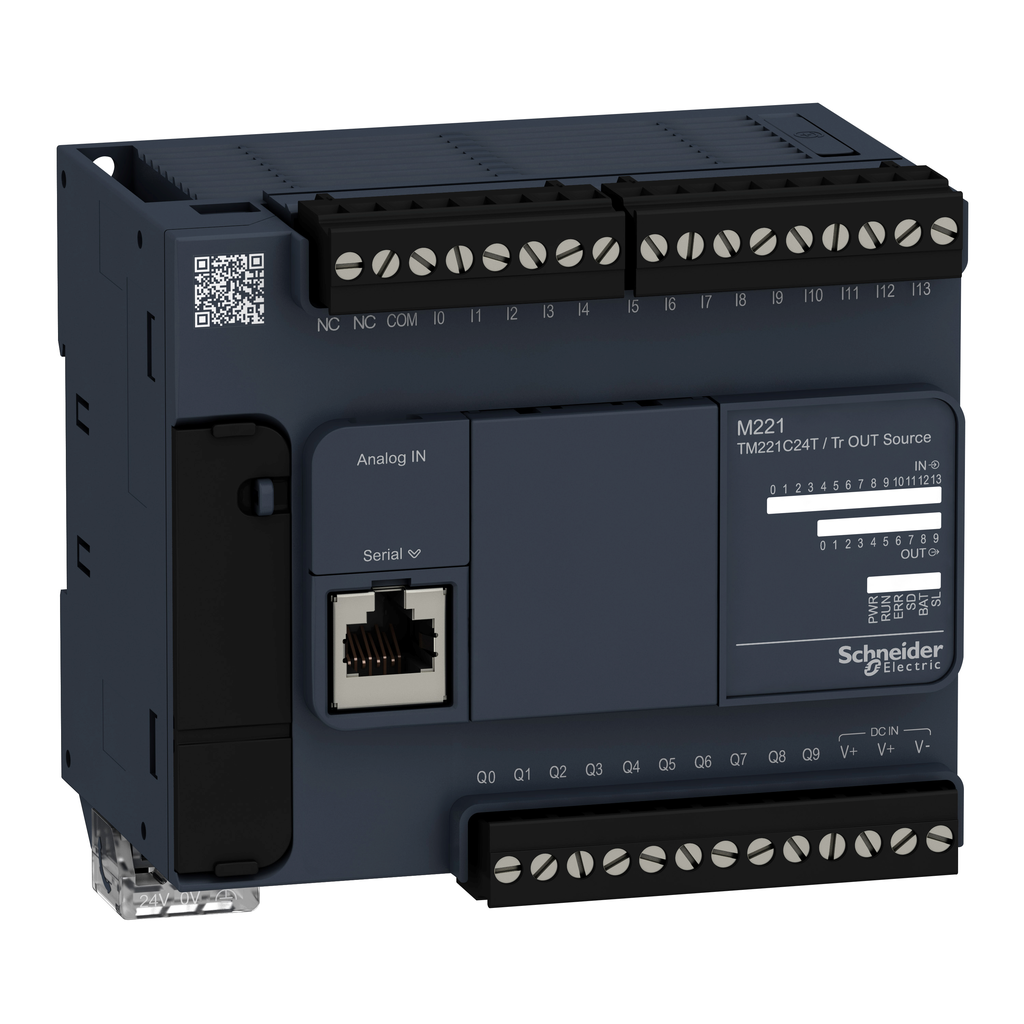

The Schneider Electric TM221C24T is part of the Modicon M221 range, a series of programmable logic controllers designed for hardwired architectures. This logic controller offers a total of fourteen discrete inputs, four fast inputs, ten transistor outputs, and two fast outputs with PNP transistor output at ten-bit resolution. The controller operates on a rated supply voltage of twenty-four volts DC and supports an output current of zero point five amps, allowing for flexible input logic configurations.

This device features easy installation with integrated connections that include a USB port with mini B USB two point zero connector, non-isolated serial link with RJ45 and RS485 interfaces, as well as RS232/RS485 support. It has a substantial memory capacity with two hundred fifty-six kilobytes dedicated to user applications and data RAM, internal variables RAM, and built-in flash memory alongside support for a two gigabyte SD card.

Rated IP20, the dimensions of this model are one hundred ten millimeters wide, seventy millimeters deep, and ninety millimeters high, with a total weight of zero point three nine five kilograms. The TM221C24T is certified by several organizations including CE, IACS E10, CSA, and DNV-GL, ensuring compliance with various safety standards. It offers versatility for DIN rail mounting and facilitates enhanced profitability through efficient machine programming with SoMachine Basic.

• Certified for safety and performance standards
• Supports versatile machine programming
• Efficient for various automation needs

Product Highlights

Engineered for reliability, the Modicon M221 series is ideal for applications requiring efficient control and automation processes.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: TM221C24T
• Type: Logic Controller
• Width: 4.33 inches
• Depth: 2.76 inches
• Height: 3.54 inches
• Weight: 0.87 lb
• Memory: 256 kB for program with 10000 instructions
• Power Supply: 24V DC
• Output Signal: Positive logic (source); Transistor
• Certifications: CE, CSA, RCM, DNV-GL, and more
• Country of Origin: Taiwan
