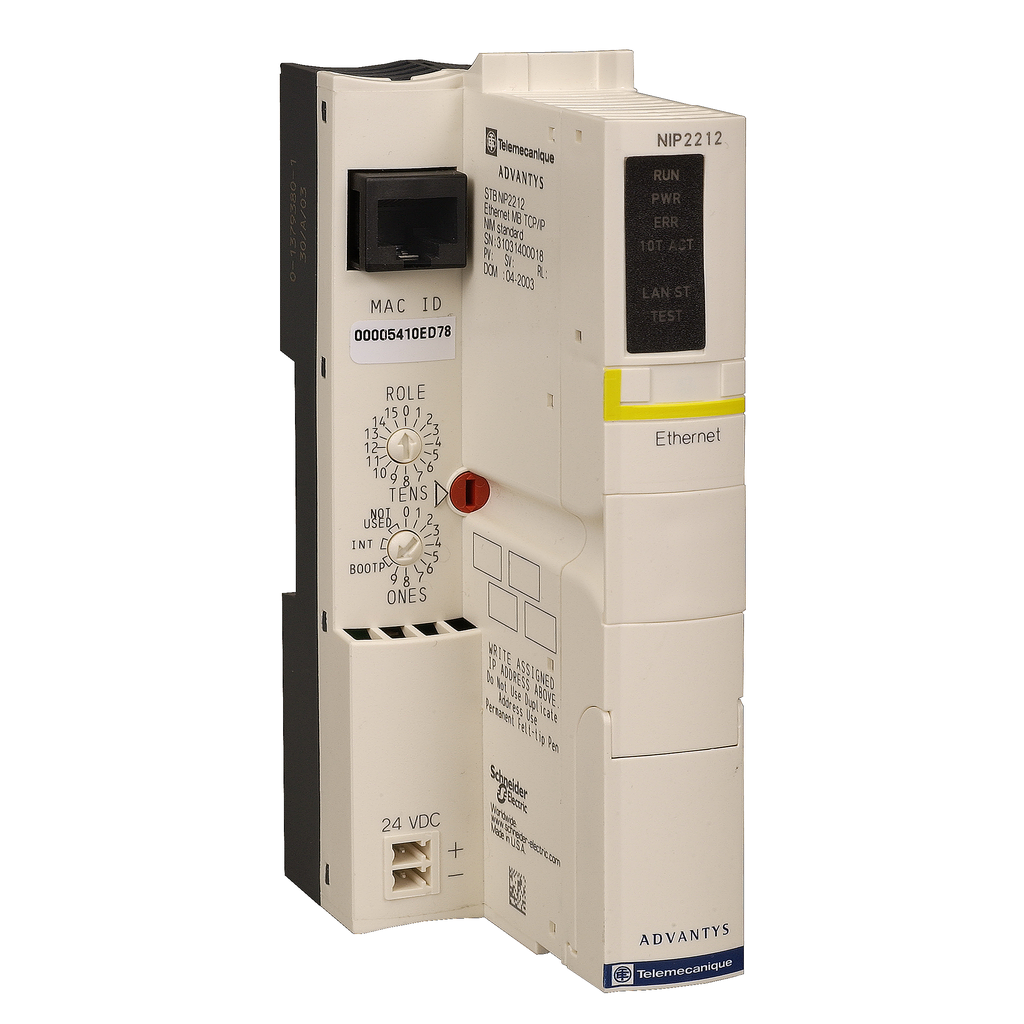

Schneider Electric STBNIP2212 Ethernet TCP/IP Network Interface Module

Product Description

Schneider Electric STBNIP2212 is an Ethernet TCP/IP Network Interface Module from the Modicon STB range. This modular device features one primary segment and allows for up to six extension segments. It operates with a rated supply voltage of twenty-four volts DC and supports a maximum supply current of seven hundred milliamps. The output voltage is five point twenty-five volts DC, with a current capacity of one point two amps. It comes equipped with various communication services, including embedded web and BootP/DHCP protocols, making it compatible with major fieldbus networks. The module accepts SELV power supply and has an IP20 enclosure rating.

• Dimensions: one hundred twenty-eight point three millimeters wide, seventy millimeters deep, and forty point five millimeters high.
• Weight: zero point thirteen kilograms, which is suitable for various applications including packaging and textile machines.
• Certifications: CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick, and UL approved.

Product Highlights

This module is ideal for automation and control applications in multiple industries.

Product Information

Standard Information

• Catalog Number: STBNIP2212
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Standard Network Interface Module
• Power Supply: SELV; nineteen point two three volts
• Input Current: four hundred thirty milliamps
• Storage Temperature: minus forty to eighty-five degrees Celsius
• Country of Origin: France
• Warranty: Eighteen months
• Net Weight: zero point thirteen kilograms
• Temperature Rating: zero to sixty degrees Celsius without derating
