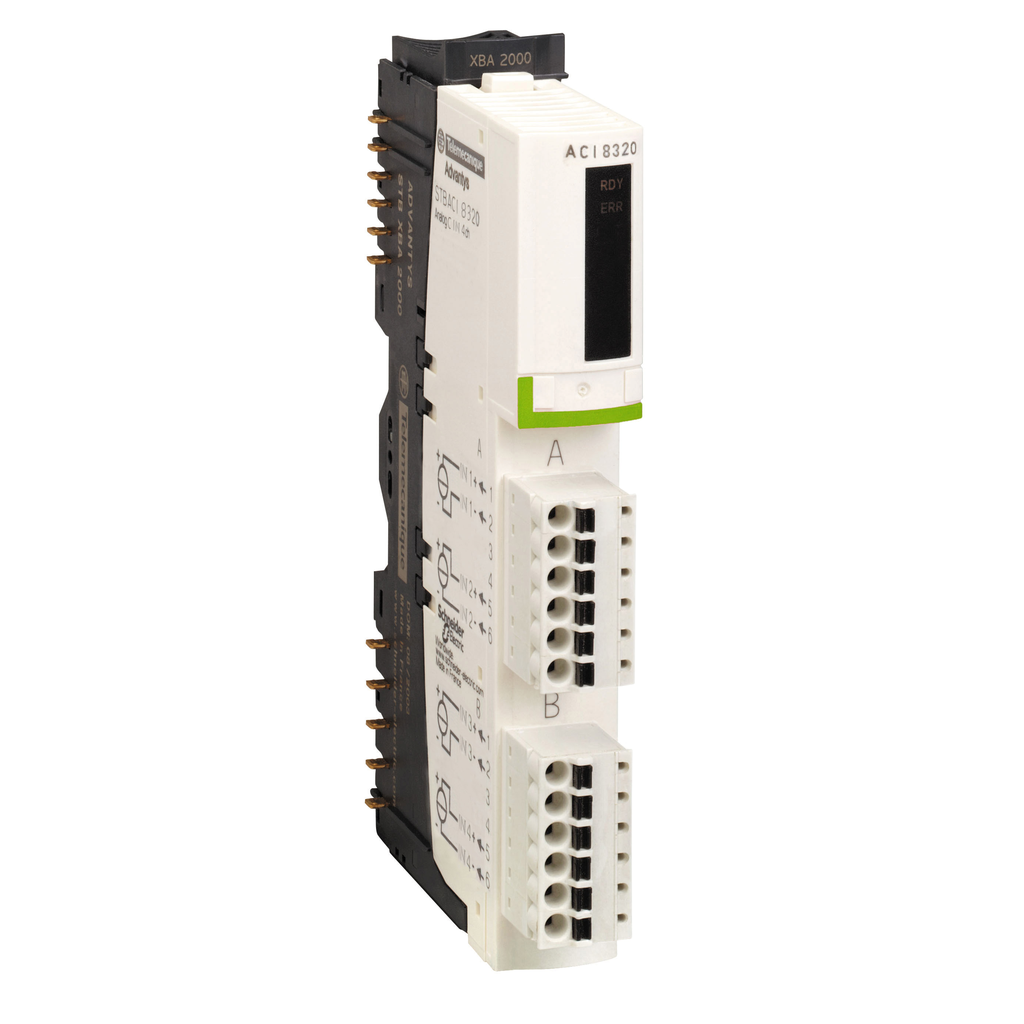

Schneider Electric STBACI8320K Squared Analog Input Kit 4-20mA

Product Description

The Schneider Electric STBACI8320K is a standard analog input kit part of the Modicon STB series. It connects to Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). This kit features four analog inputs that accept current inputs ranging from zero to twenty milliamps, with a resolution of fifteen bits plus sign. Compatibility with various major fieldbus networks is a highlight of this device.

• Four analog inputs with current range from 0mA to 20mA
• Rated supply voltage of 24V DC
• IP20 rated with dimensions of 128.3mm by 70mm by 18.4mm

Product Highlights

This kit includes the STBACI8320 module, a mounting base, and terminal connectors. Ideal for use in various applications such as packaging and distribution machines.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: STBACI8320K

Technical Specifications

• Catalog Number: STBACI8320K
• Depth: 70 mm
• Width: 128.3 mm
• Height: 18.4 mm
• Output: 24 V DC
• Current: 95 mA
• Enclosure: IP20 EN 61131-2 Class 1
• Certifications: ATEX 3G, CSA, FM Class 1 Division 2, UL
• Warranty Length: 18 months
• Temperature Rating: +/-0.005%/°C
• Storage Temperature: -40 to 185 °F without derating
